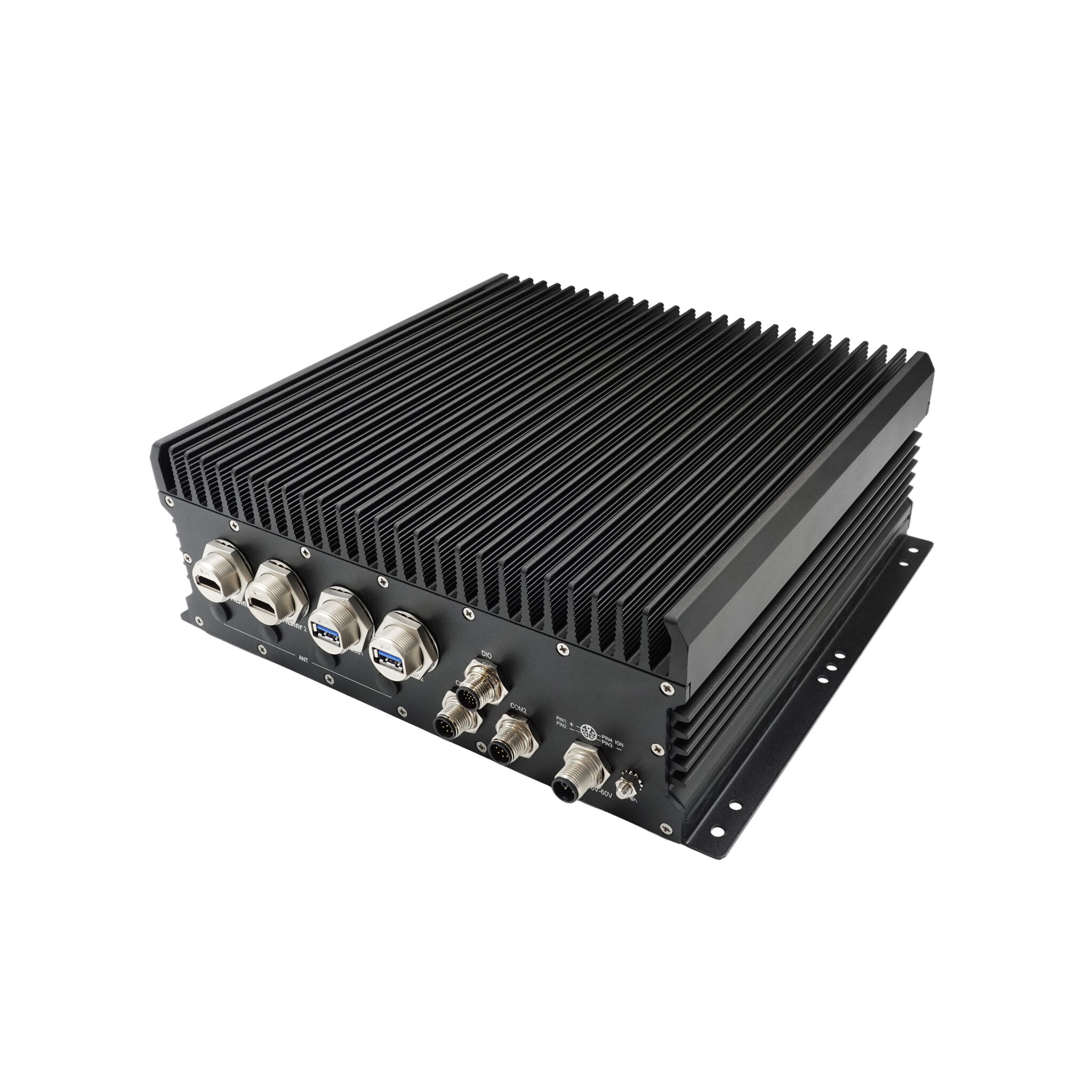

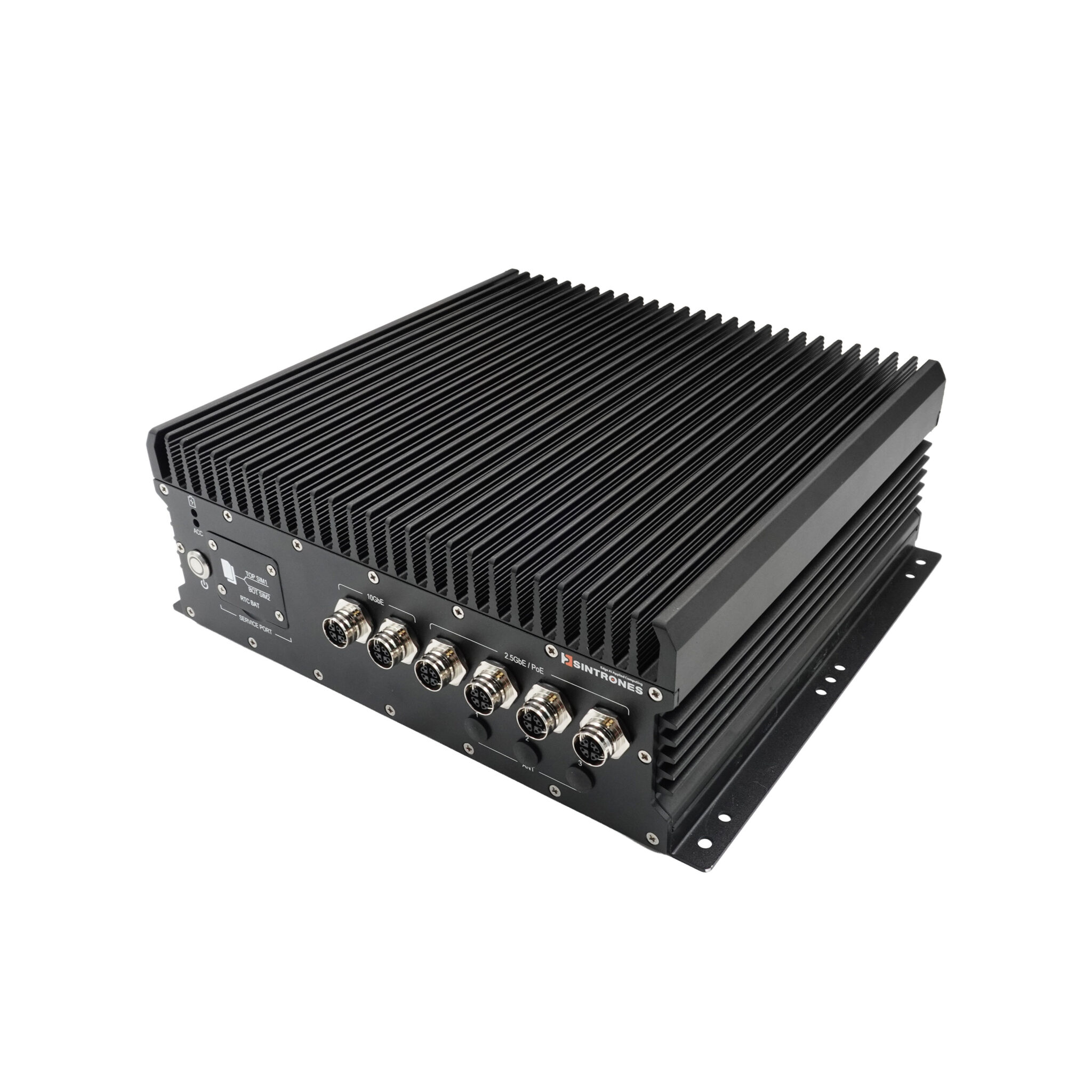

Edge AI Rugged Computer

ABOX-5221(P)(G)-IP66 Series

• Intel® Core™ 9 Processor 273PTE
• Intel® Core™ 7 Processor 251TE
• Intel® Core™ 5 Processor 221TE

• Processor-integrated GPU –
  Intel® UHD Graphics 700 Series
• Optional discrete GPU –
  NVIDIA RTX™ Embedded 2000 Ada / 3500 Ada / 5000 Ada
  Intel® Arc™ A370E

• R680E

• 2 x DDR5-5600 SO-DIMM up to 96GB (ECC support with ECC DRAM)

• TPM 2.0

• Auto reset for unresponsive system
(custom 1-255 sec/min settings in BIOS)

• 2 x HDMI® up to 3840 x 2160 @ 60Hz as specified in HDMI 2.0b

• 2 x 10GbE (Marvell AQC113) via M12 X-code

• 4 x 2.5GbE (Intel I226IT) via M12 X-code
* ETH3 supports Intel® AMT
** PoE supports 25.5W per port with total power budget: 120W

• 2 x USB 3.2 Gen 2

• 8 x DI (DC 5-60V), 8 x DO (DC 5V/100mA) via M12 A-code

• 2 × RS-232/422/485 via M12 A-code

• 1 x M.2 2280 Key M for NVMe/SATA SSD
• 2 x M.2 2280 Key M for NVMe SSD
• 2 x 2.5″ SATA SSD

• DC 18-60V (nominal power input DC 24V/48V) via M12 K-code

• OCP, OVP, surge protection, reversed polarity protection

• Ignition detection, Smart Power Management

• Removable front tray for coin cell battery

• Optional battery kit for up to 10 minutes emergency backup time
(Battery charging Temp. 0°C ~ 45°C and discharging Temp. -10°C ~ 60°C)
* BBU backup time varies depending on actual overall system power consumption and battery is required to be charged before being used for system power backup
** Operating temperature will be limited within -10°C and 60°C with the battery kit installed.

Patent No.: M447854 (Built-in battery)

• Windows 11 IoT Enterprise LTSC
• Ubuntu 26.04 LTS

• -40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
  *Operating temperature varies by accessories installed.

• -40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
  *Operating temperature varies by accessories installed.

• 10% RH ~ 90% RH (non-condensing)

• IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810H, Method 514.8, Procedure I, Category 4

• MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)

• Aluminum Alloy

• 7 x SMA connector mounting hole

• Wall mounting

• 6 kg (13.23 lbs)

• 290 x 253.5 x 101.5 mm (11.42 x 9.98 x 4 in.)

• IP66

• ABOX-5221(P)(G)-IP66-zzzzz (P= w/ PoE, G=w/ Discrete GPU, zzzzz=273PTE=Intel® Core™ 9 273PTE, zzzzz=251TE=Intel® Core™ 7 251TE, zzzzz=221TE=Intel® Core™ 5 221TE)

• Intel® Core™ Series 2 Processors with Discrete GPU Options, High-bandwidth 10GbE and IP66 Edge AI Computer

• Made in Taiwan

• DDR5-5600 SO-DIMM, 8 GB to 48 GB, -40°C ~ 85°C (ECC option available)

• M.2 2280 Key M NVMe SSD w/ thermal kit, -40°C ~ 85°C
• M.2 2280 Key B-M SATA SSD w/ thermal kit, -40°C ~ 85°C
• 2.5″ SATA SSD, -40°C ~ 85°C

• M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C

• M.2 3042/3052 Key B WWAN module w/ thermal kit, -40°C ~ 85°C

• M.2 2230 Key A-E GNSS module, -40°C ~ 85°C
• M.2 2242 Key B GNSS module, -40°C ~ 85°C
• Mini PCIe GNSS module, -40°C ~ 85°C

• M.2 2242 Key B CAN Bus module, -40°C ~ 85°C
• Mini PCIe CAN Bus module, -40°C ~ 85°C

• BAT-5200 battery kit, charging Temp. 0°C ~ 45°C, discharging Temp. -10°C ~ 60°C

• AC/DC 100-240V/24V 280W C14 bare wire power adapter
