Edge AI Rugged Computer

IBOX-600-IP66

• NVIDIA® Jetson Orin™ NX 16GB – 100 TOPS
(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)

• NVIDIA® Jetson Orin™ NX 8GB – 70 TOPS
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)

• NVIDIA® Jetson Orin™ Nano 8GB – 40 TOPS
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8GB LPDDR5)

• NVIDIA® Jetson Orin™ Nano 4GB – 20 TOPS
(512 CUDA cores + 6-cores ARM Cortex-A78AE CPU + 4GB LPDDR5)

Platform Security Controller (PSC), Security Engine (SE)

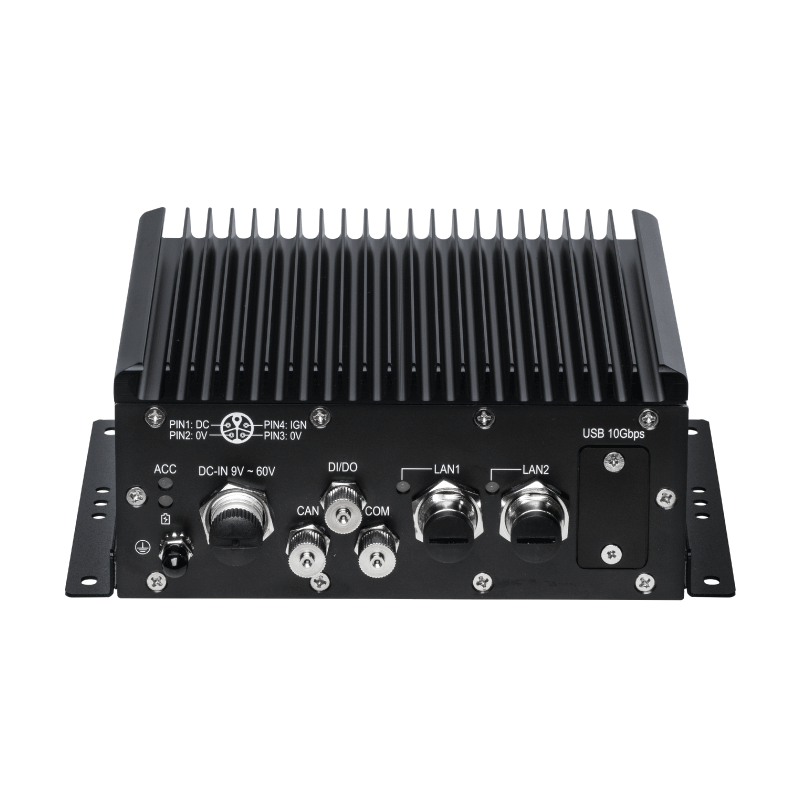

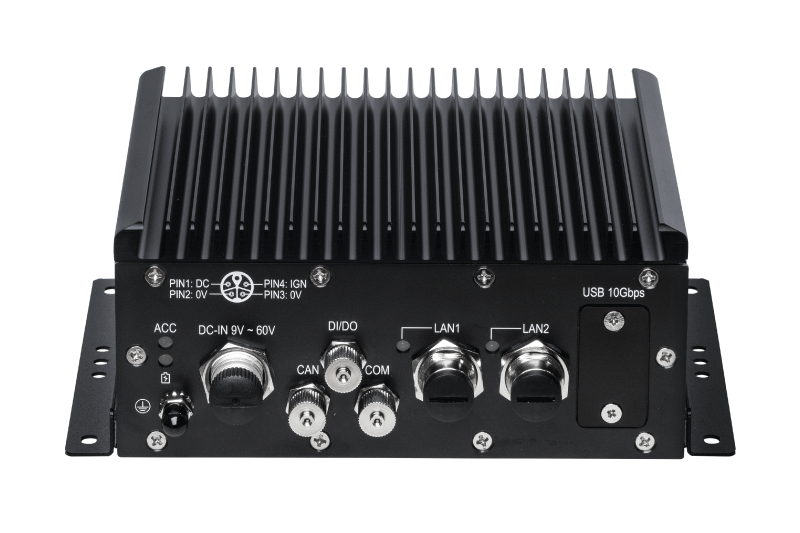

M12 X-coded for 1 x 2.5GbE & 1 x GbE

2 x USB 3.2 Type-A with cover
* Two ports share 10Gbps bandwidth

1 x HDMI® 2.1 Type-A Supports 3840 x 2160@30Hz

1 x HD audio from the HDMI®

1 x M8 A-coded connector for RS-232/422/485

1 x CAN FD

1 x M8 A-coded connector for 3 x DI / 4 x DO

1 x USB Type-C for System Recovery (Device only)

1 x nano SIM card slot

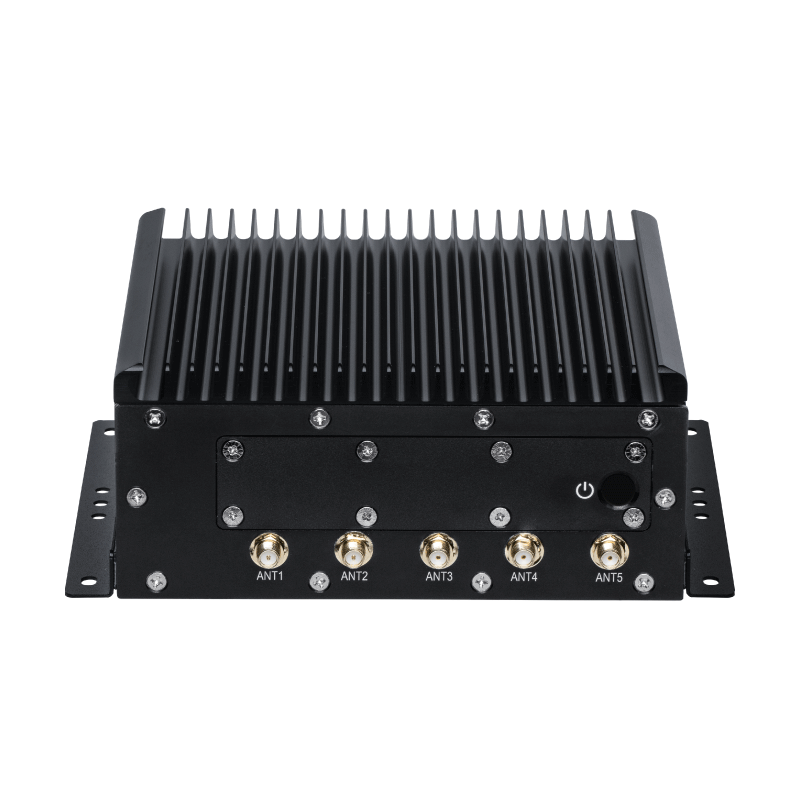

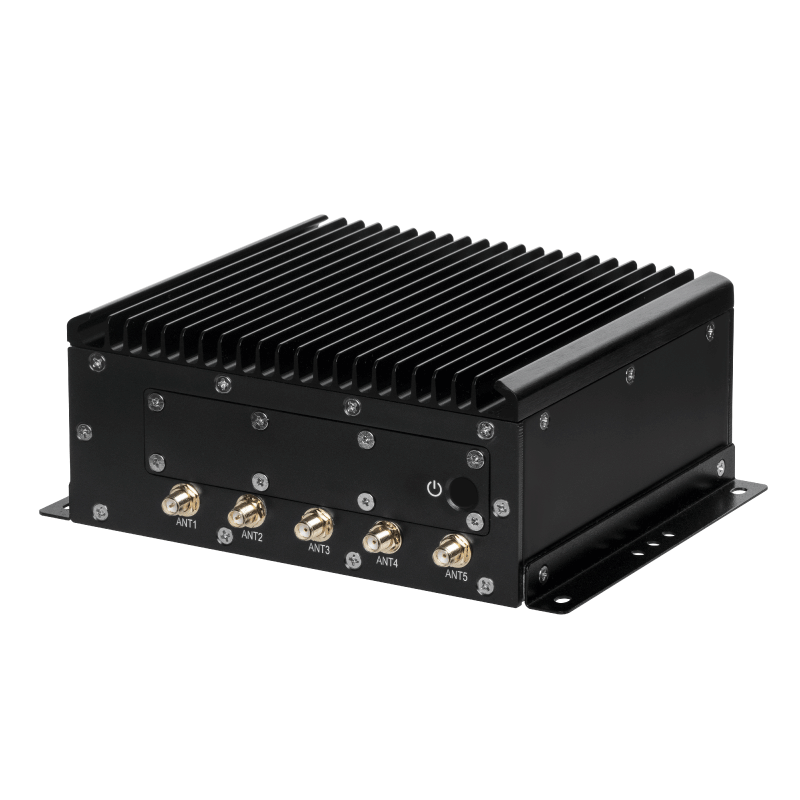

5 x Pre-cut holes for external SMA antenna

High-capacity Coin Cell Battery for RTC

UPS for System Power Backup

• 1 x M.2 2230 Key E slot
• 1 x M.2 3042/52 Key B slot

• 1 x mPCIe full-size slot (USB 2.0 supported)

1 x Pre-Installed NVMe SSD (240GB/480GB)

NVIDIA® JetPack including Jetson Linux, NVIDIA® developer tools

-25 ~ 70ºC, ambient w/ 0.6m/s airflow
*Operating temp. varies by accessories installed.

-40 ~ 80ºC

10% RH – 90% RH (non-condensing)

CE, FCC Part-15 Class A, E-Mark, EN50155, EN45545 (R25)

• Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810G – Method 514.6, Procedure I, Category 4

MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD

IP 66

• 1 x M12 K-coded for DC-in 9~ 60V
• Support Smart Power Management, OCP, and OVP

Aluminum alloy

Fanless passive cooling design

Wall-mounting

1,400 g

150 mm (L) x 135 mm (W) x 66 mm (H)

IBOX-600-IP66-ONX16-S05｜NVIDIA Jetson Orin NX 16GB / SSD 480GB / Model IP66

IBOX-600-IP66-ONX8-S05｜NVIDIA Jetson Orin NX 8GB / SSD 480GB / Model IP66

IBOX-600-IP66-ON8-S05｜NVIDIA Jetson Orin Nano 8GB / SSD 480GB / Model IP66

IBOX-600-IP66-ON4-S05｜NVIDIA Jetson Orin Nano 4GB / SSD 480GB / Model IP66

IBOX-600-IP66-ON4-S02｜NVIDIA Jetson Orin Nano 4GB / SSD 240GB / Model IP66

NVIDIA® Jetson Orin NX / Nano SoM w / 2x LAN/ 1x HDMI / 1x CAN bus / DC 9-60V / Intelligent Computer

Made in Taiwan

M.2 Wi-Fi Module

M.2 WWAN Modem

mPCIe GPS Module

DIN Rail / VESA Kit
