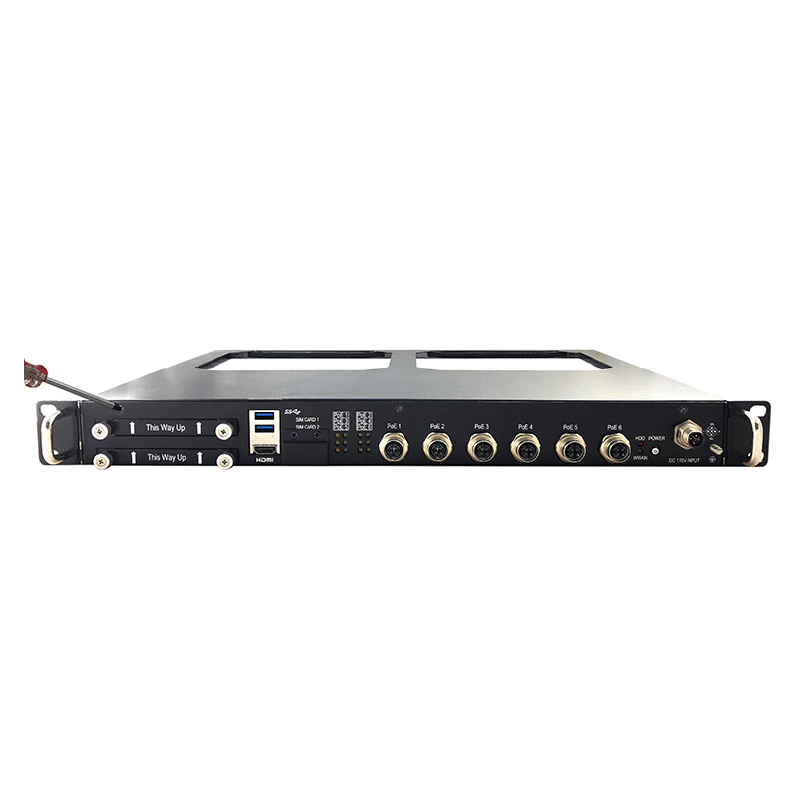

In-Vehicle Rugged Computer

RBOX-1000-M12X

Intel Gen6 Core i7-6600U 2.6GHz up to 3.4GHz
2 Cores/ 4 Threads
Benchmark Score up to 4867 (Based on PerformanceTest V9)
VT-x and VT-d Supported

2 x SO-DIMM DDR4 up to 32GB (16GB x2)

Watchdog Timer Support, Offer 1 – 255 Step

6 x Intel I210-AT support PXE boot

Intel HD Graphics 520

DirectX Video Acceleration (DXVA) for Accelerating Video
Processing- Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 4.0

1

Up to 4096 x 2304@60 Hz

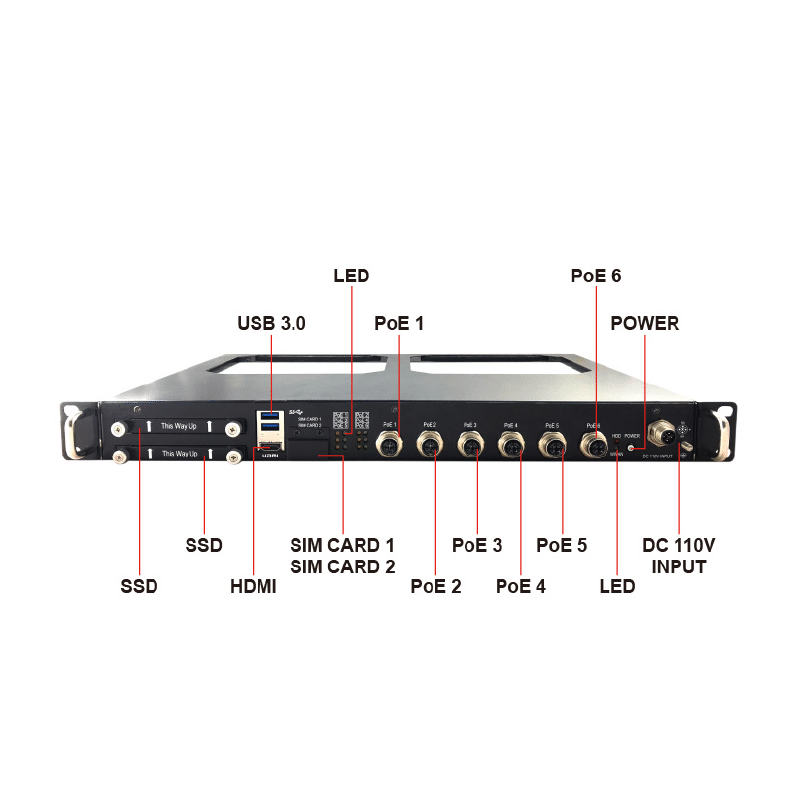

6 x 10/100/1000 BASE-T
w/ M12 X-code connectors

Optional PoE total 90W max

2 x USB 3.0 w/Type-A Connectors

2 x Mini-card slots (USB Bus only)

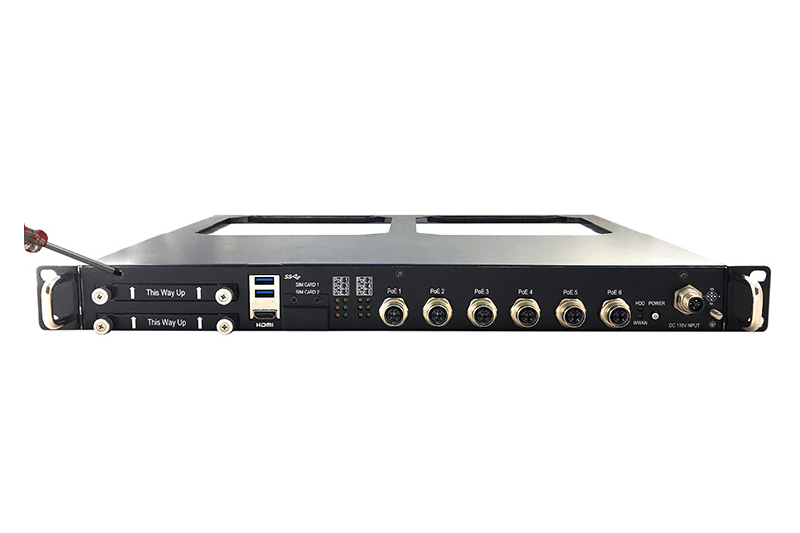

2 x 2.5″ Drive Bay for SATA Type

1

RAID 0, 1, 5

2, supported onboard with eject

77-137V DC Power Input with Isolation
(Isolation for 24V/48V/72V)

Automatics Recovery Short Circuit Protection
Meet EN50155 Class S2

482 x 300 x 44 mm

2500g

Aluminum Alloy

1U 19″ Rack mount

-40 ~ 70°C EN50155 Tx, ambient w/0.6m/s airflow

10% RH – 90% RH (non-condensing)

-40 ~ 85°C

EN50155, EN61373

IP20 (IP40 Kit for Optional)

RBOX-1000-M12X-i7

Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input 6 x GbE with optional PoE In-Vehicle Computer/ EN50155 Railway Applications

Made in Taiwan
