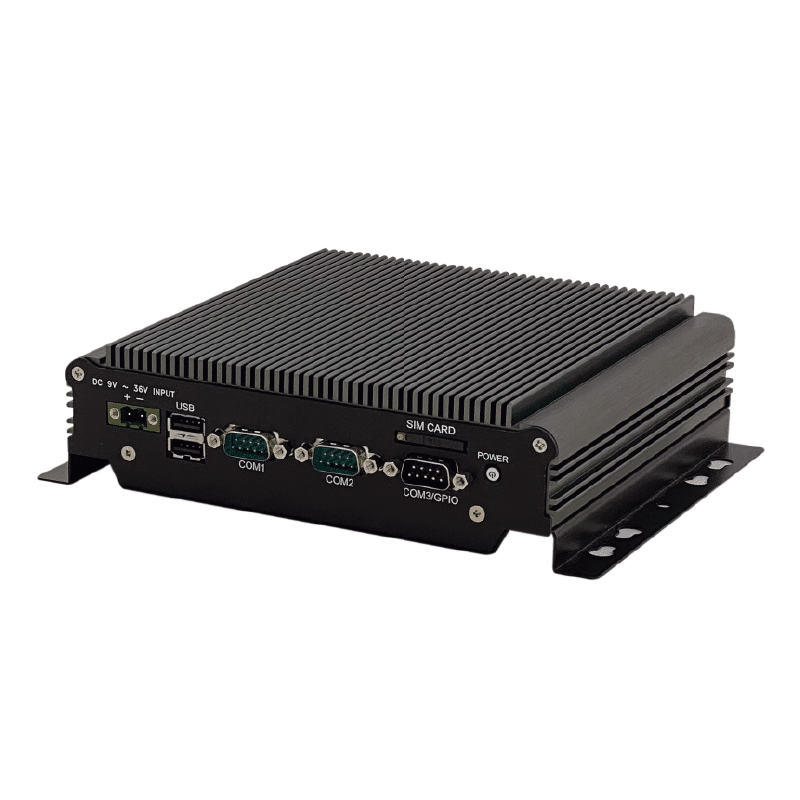

Rugged Industrial Computer

SBOX-2320

• Intel N3710 Quad Core CPU up to 2.56GHz

• Intel N3160 Quad Core CPU up to 2.24GHz

• Intel N3060 Dual Core CPU up to 2.48GHz

• 1 x DDR3L-1600 SO-DIMM up to 8GB

• Intel HD Graphics

• 2 x Serial ATA ports with 6Gb/s HDD Transfer Rate

• 2 x Intel i210-AT Gigabit Ethernet

• 1 ~ 255 Level Reset

• 2 x RS-232/422/485 (Opitional Max. 4 x RS-232)

• 2 x USB 2.0 and 2 x USB 3.0 port

• 2 x RJ45 Ports for GbE

• HDMI/DVI/VGA(Through DVI-I *), Max. 3 Display Outputs

* Use only with Single Link DVI Cables.

• 4 In and 4 Out GPIO Ports (5V Level)

• Line-Out

• 3 x Mini-card Slots ( 1 with SIM for LTE/3G Only)

• Windows*, Ubuntu 16.04 64bit

*The supported version depends on the Microsoft® announcement.

• -30 ~ 60ºC, ambient w/ 0.6m/s airflow

• -40 ~ 85°C

• 10% RH – 90% RH (non-condensing)

• DC 9-36V Input w/ Reverse Polarity OCP and OVP Protection

• 1 x 2.5” Drive Bay for SATA Type Hard Disk Drive/SSD

• 1 x SATA DOM

• Aluminum Alloy

• Wall-mount, VESA-mount, Din Rail Mounting Kit

• 1200g (Barebone)

• 182 x 167.6 x 54 mm

SBOX-2320-000

Intel Braswell N3060 Atom CPU/ 2 x LAN/ HDMI/ DVI/ VGA/ DC 9-36V Fanless Box PC

Made in Taiwan

SO-DIMM max.DDR3L 1600, 2GB~8GB,0~70ºC/-40~85ºC

2.5inch MLC/TLC 64GB~1TB 0~70ºC/-40~85ºC

MLC 8GB~128GB, 0~70ºC/-40~85ºC

Wifi miniPCIe half size card 802.3a/b/g/n/ac

LTE miniPCIe card

GPS miniPCIe card

Power Adapter 12V/5A 60W Jack
