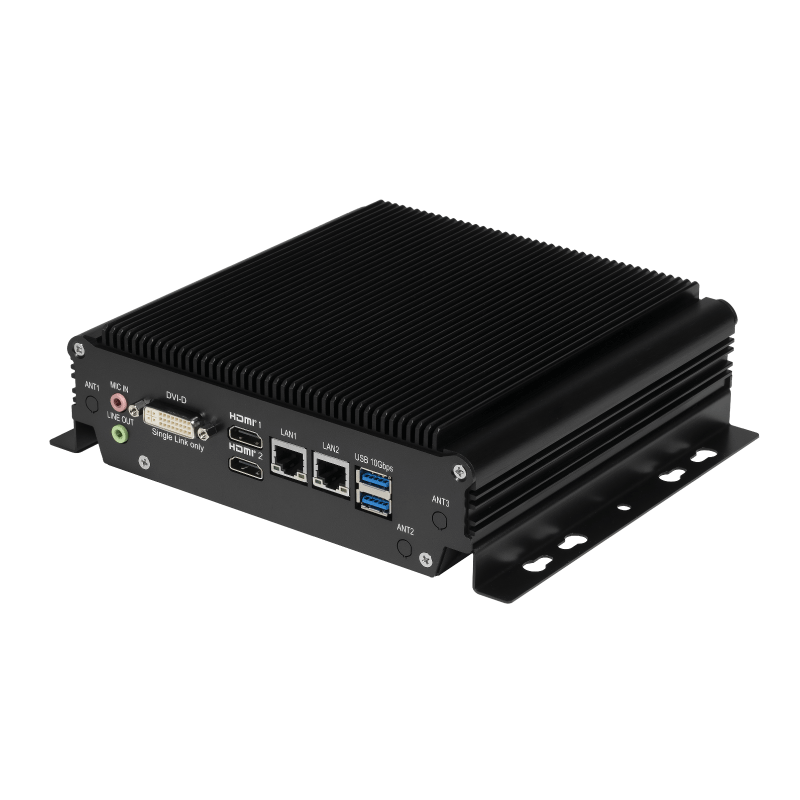

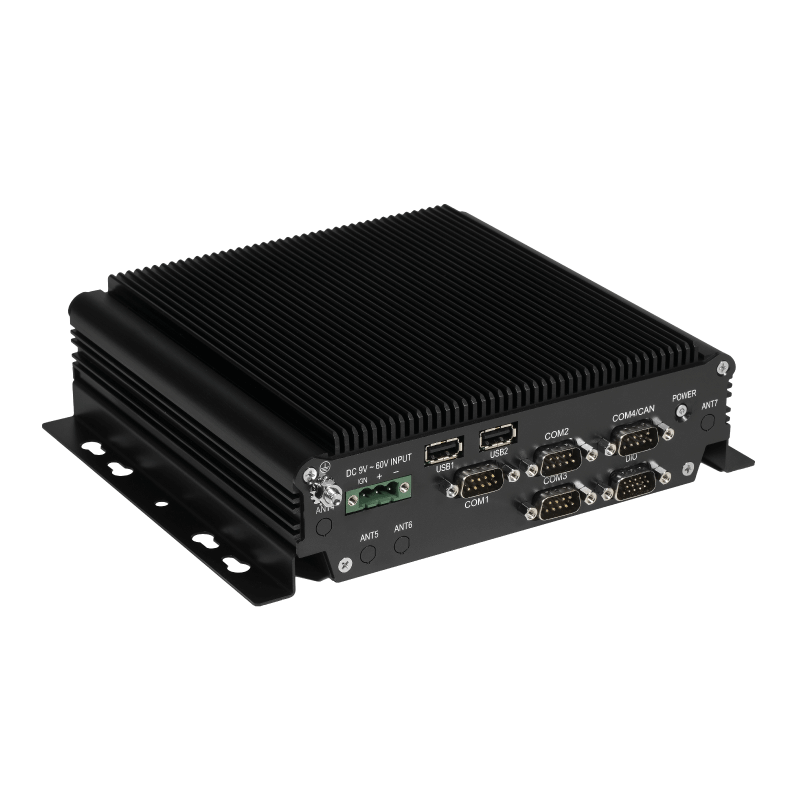

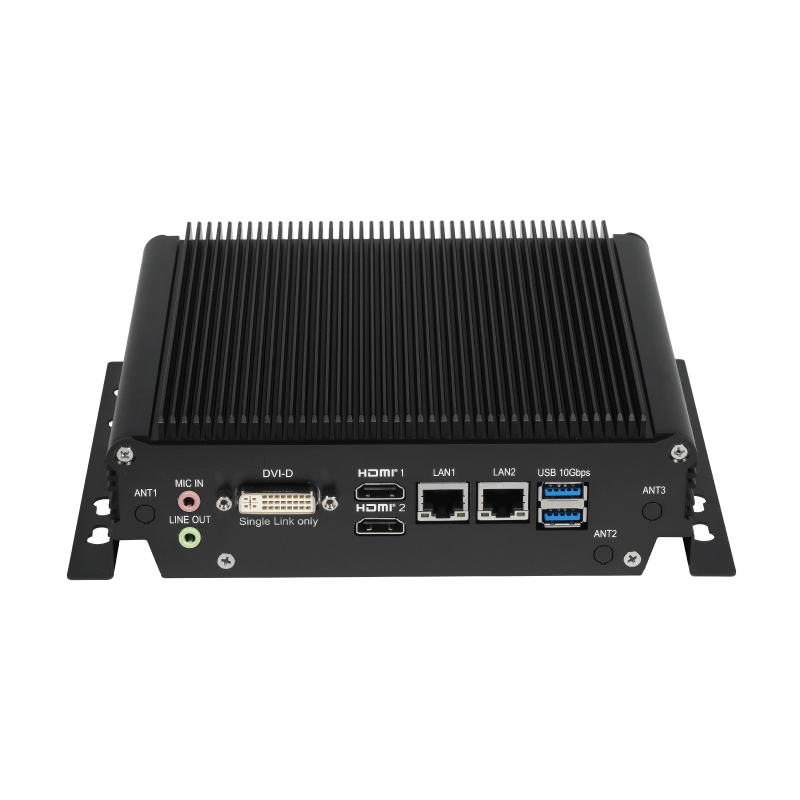

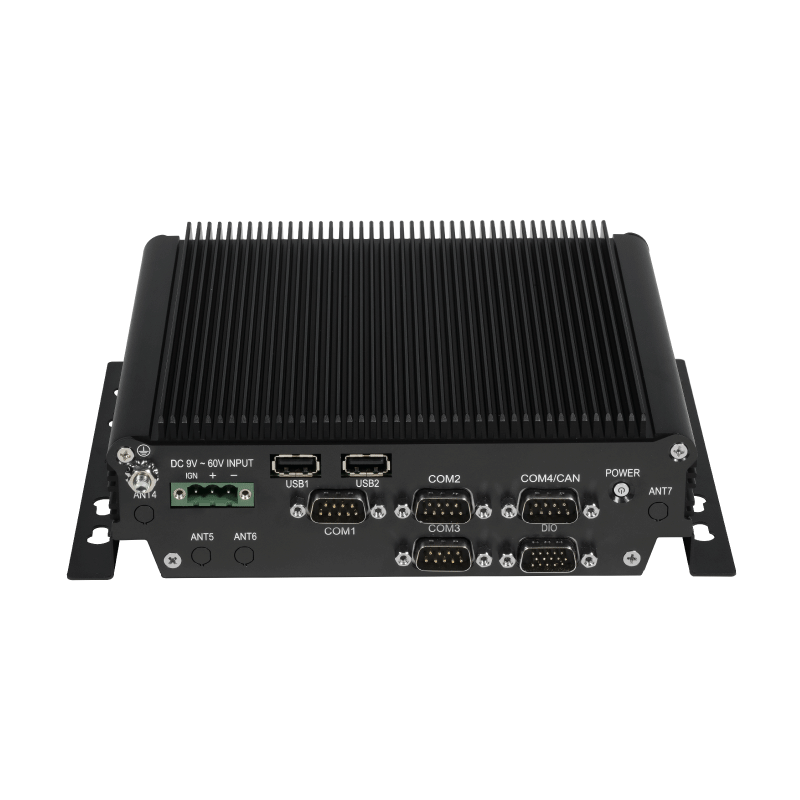

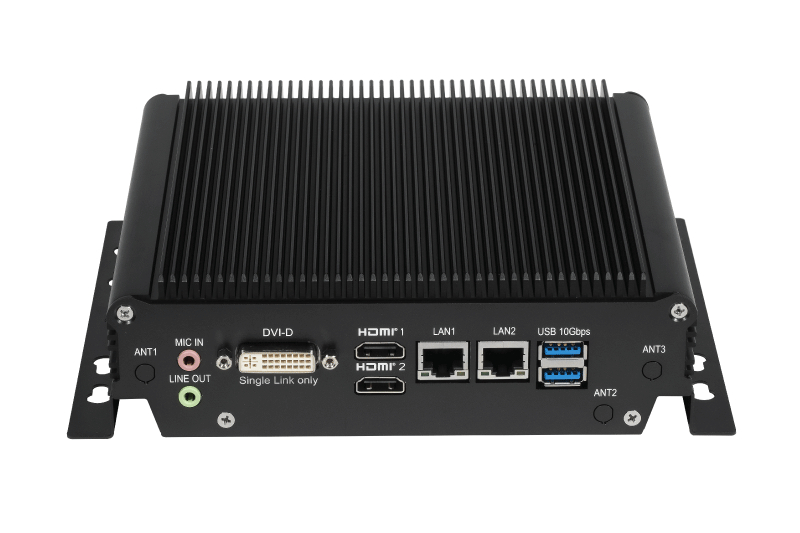

In-Vehicle Rugged Computer

VBOX-3123-R2312

• AMD Ryzen™ Embedded R2312 2C/4T Processor

• CPU Built-in Graphics AMD Radeon™ Graphics

• 1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM)

• TPM 2.0

• System reset 1 ~ 255 sec. or min. settings in BIOS

• 1 x DVI-D (Only support Single Link DVI-D cables)
• 2 x HDMI® supports 4K@60Hz as specified in HDMI 2.0b

• 1 x Line-out and 1 x Mic-in

• 2 x I210-AT GbE RJ-45 port

• 2 x USB 3.2 Gen 2 (10Gbps)
• 2 x USB 2.0

• 4 x DI (9~60V) / 4 x DO (5V / 100mA)

• 2 x Analog Input (0~60V w/0.5V accuracy)

• 4 x RS-232/422/485

(COM4 is optional with CANBUS)

• 1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Dual SIM
• 1 x M.2 2230 Key E supports PCIe and USB2.0 Wi-Fi/BT

• 2 x mPCIe full size slot supports USB 2.0

• 1 x M.2 2280 Key M supports NVMe or SATA SSD
• 1 x 2.5” SATA SSD

• DC 9 ~ 60V input

• Over voltage and reverse polarity protection

• Ignition Management for Variety Vehicle

• Internal backup battery Kit for about 10 mins operating

* UPS backup time varies depending on actual overall system power consumption.

* Operating temperature will be 0°C~55°C with the battery kit.

Patent No. : M447854 – Build-in Battery

• Windows 10 IoT Enterprise 64bit LTSC
• Windows 11 IoT Enterprise 64bit LTSC
• Ubuntu 20.04 LTS 64bit

• -40 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system)

• -40 ~ 85°C

• 10 ~ 90% @ 40ºC (non-condensing)

• CE, FCC Class A, UKCA, E-Mark

• MIL-STD-810G, Method 514.6, Procedure I, Category 4 with SSD

• MIL-STD-810G, Method 516.6, Procedure I,

Trucks and semi-trailers=15G (11ms) with SSD

•  Aluminum Alloy

•  Wall-mounting

•  1.8 Kg

•  210 (L) x 171 (W) x 56 (H) mm

VBOX-3123-R2312

AMD Ryzen™ Embedded R2312 w/ 1x DVI-D / 2x HDMI® / 2x GbE / 4x COM / DC 9~60V In-Vehicle Computer

Made in Taiwan

DDR4-2400/2666/3200 SO-DIMM, 8GB~32GB, -40~85°C (ECC Option Available)

M.2 2280 M Key NVMe TLC -40~85°C 512GB~2TB

M.2 2280 M Key SATA TLC -40~85°C 128GB~2TB

2.5 inch SATA TLC -40~85°C 128GB~2TB

M.2 2230 Key A+E Wi-Fi 6 + Bluetooth 5.2 module

M.2 3042/52 5G/LTE modem with Thermal Kit

mPCIe GPS module

mPCIe CAN Bus module (USB interface only)

2350mAH 3S1P Battery kit (0°C ~55°C for Discharge)
