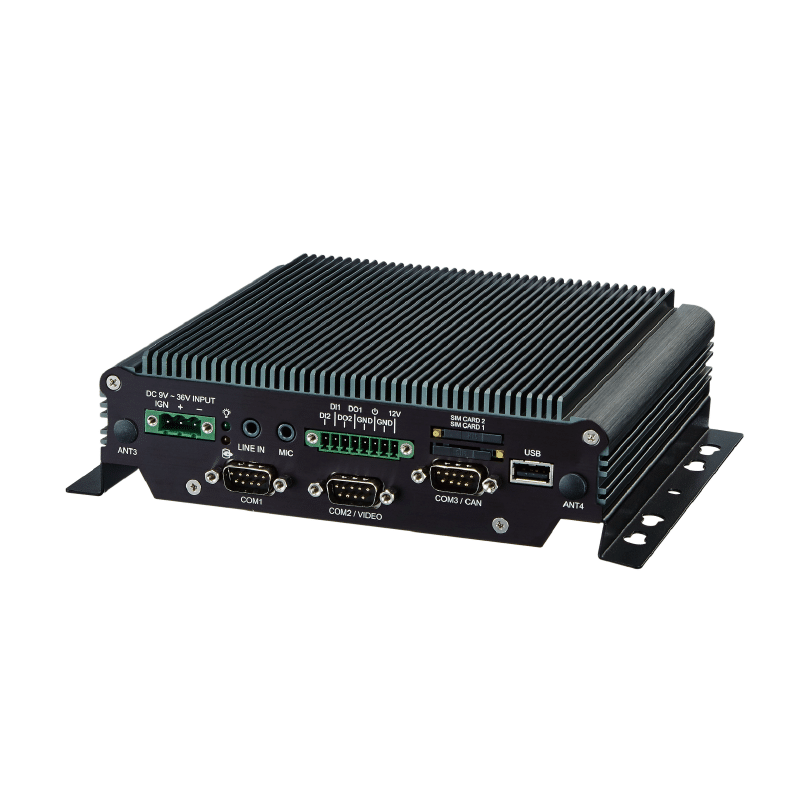

Intel® Pentium® / Celeron® Processor In-Vehicle Computer with 9~36V DC Input
• Intel® N3710 Quad Core CPU up to 2.56GHz
• Intel® N3160 Quad Core CPU up to 2.24GHz
• Intel® N3060 Dual Core CPU up to 2.48GHz
• 1 x DDR3L-1600 SO-DIMM up to 8GB
• Intel HD Graphics
• 2 x SATA 6Gb/s for HDD/SSD
• 2 x Intel I210-AT Gigabit Ethernet
• 1 ~ 255 Level Reset
• 3 x RS-232 (COM1 & COM2 with RS-232/422/485 (Optional Max 4 x RS-232/422/485))
• 2 x USB 3.0, 1 x USB 2.0
• 2 x RJ-45 for GbE
• 1 x HDMI and 1 x DVI-I*
* Use only with Single Link DVI Cables.
• 2 In and 2 Out (12V / 100mA)
• Mic-in/Line-out
• 3 x Mini-card Slots
• 4 x SMA-type External Antenna Connectors for LTE / WLAN / UMTS / GSM / GPRS / GPS / Bluetooth
• 2 x SIM Card Sockets Supported Onboard with eject
• Microsoft® Windows Embedded Standard (WES) 7 Windows 10 IoT Ubuntu 16.04
• -40°C ~ 70°C (SSD), ambient w/ 0.6m/s airflow
• -40°C ~ 80°C
• 10% RH – 90% RH (non-condensing)
• IEC 60068-2-64, Random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
• Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
• CE, FCC Class A, E-Mark Compliance
• 1 x 2.5” Drive Bay for SATA Storage
• 1 x SATA DOM
• 9V – 36V DC Power Input
• Vehicle Power Ignition for Variety Vehicle
• Power off Delay Time Setting by BIOS and Software
• Internal Battery Kit for 10 Mins Operating (Optional)
*UPS backup time varies depending on actual overall system power consumption.
Patent No. : M447854 – Build-in Battery
• Aluminum Alloy
• Wall-mount, VESA-mount, Din Rail Mounting Kit
• 1,406 g
• 182(L) x 167.6(W) x 54(H) mm
VBOX-3130-NX (X= 0= w/N3060 , X= 1= w/N3160 , X= 2= w/N3710)
Intel® Pentium® N3710 / Celeron® N3160 / Celeron® N3060 Processor / 9~36V DC Input / In-Vehicle Computer
Made in Taiwan
DDR3L-1600 SO-DIMM 2 GB~8 GB, 0~70ºC/-40~85ºC
2.5 inch MLC/TLC 64 GB~1 TB, 0~70ºC/-40~85ºC
8 GB~128 GB MLC 0~70ºC/-40~85ºC
Wi-Fi, mPCIe, Half Size, IEEE 802.11 a/b/g/n/ac
LTE mPCIe Card
GPS mPCIe Card
BAT-3000 Kit, 1150mAH 3S1P Battery Kit (-30~60ºC)
Power Adapter 12V/5A 60W
