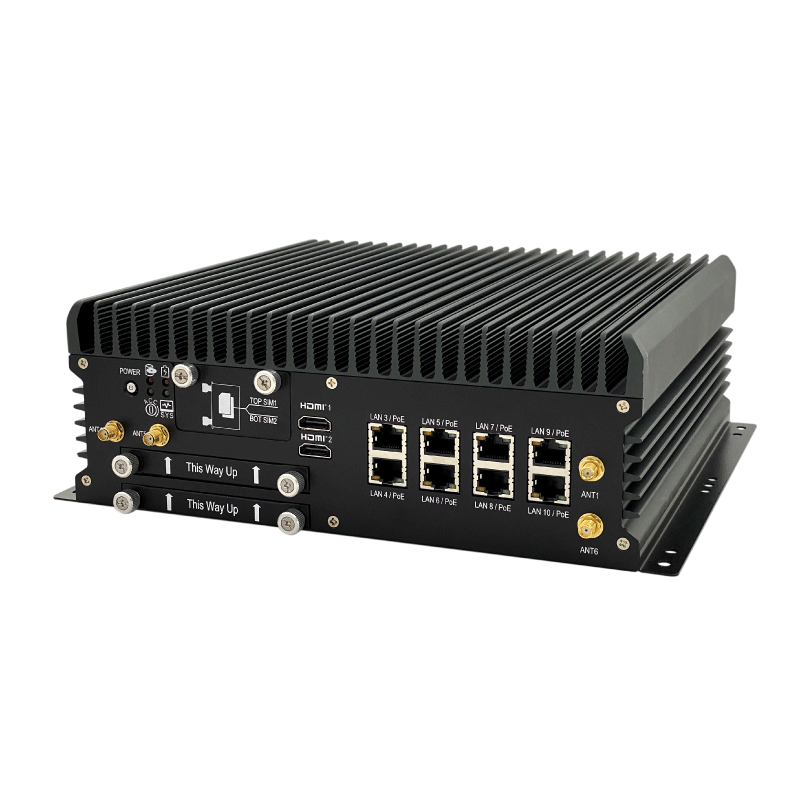

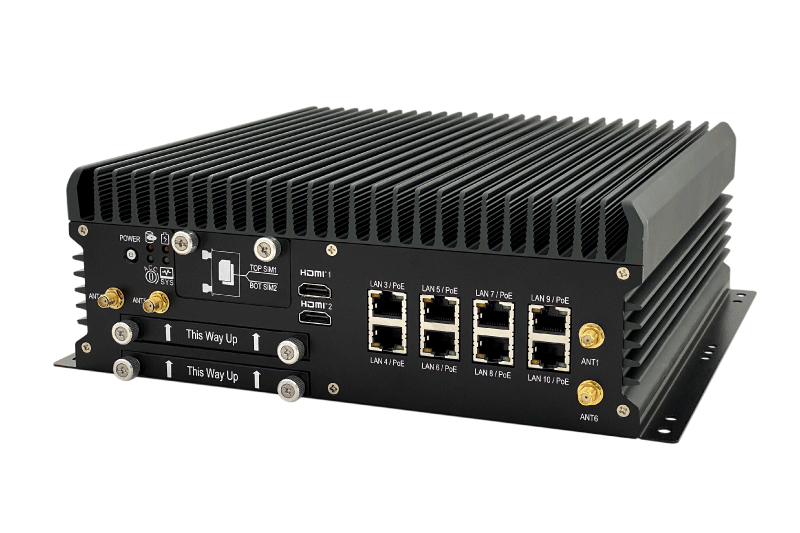

Edge AI Rugged Computer

ABOX-5210(P)(G)

• Intel Gen10 Xeon W-1290TE (20M Cache 1.8GHz up to 4.6GHz)*

*Use only with Intel W480E

• Intel Gen10 Core i9-10900TE (20M Cache 2.0GHz up to 4.5GHz)

• Intel Gen10 Core i7-10700TE (16M Cache 2.0GHz up to 4.4GHz)

• Intel Gen10 Core i5-10500TE (12M Cache 2.3GHz up to 3.7GHz)

• Intel Gen10 Core i3-10100TE (6M Cache 2.3GHz up to 3.6GHz)

• Intel Gen10 Core G5900TE (4M Cache 3.0GHz)

• Q470E / W480E

• 2 x DDR4 2666/2933 MHz SO-DIMM up to 64GB (Optional ECC support with Xeon W-1290TE)

• 9 x Intel i210-AT and 1 x i219LM (iAMT9.5 w/ i5, i7 only) Gb/s Ethernet Controllers Onboard Support PXE and WOL

• 2 ~ 255 Level Reset

• 2.0

• 3 x RS 232/422/485 (option additional 1 x RS 232/422/485)

• 4 x USB 3.2 5Gbps Ports

• 10 x RJ45 Ports for GbE (Optional 8 with M12 X Coded Connectors and 8 x PoE Total Max.120W)

• 3 x DP (Intel built-in GPU), 2 x HDMI Ports (MXM Graphics)

• 8 x DI (5~48VDC) and 4 x DO (5VDC, 100mA)

• 1 x Line-out, 1 x Line-in and 1 x Mic-in

• 1x M.2 A-E Key 2230 slot, 1 x M.2 B Key 3042 Slot w/ 2 x SIM Card Sockets for WWAN

Patent No. : M592609 – Automatic SIM Card Detection

• 2 x Full Mini-PCle Slots and 1 x Full Mini-PCIe Slot w/ USB interface only for WWAN sharing 2 x SIM Card Sockets with M.2 B Key 3042 Slot

• Windows 10 64bit, Ubuntu 20.04 64bit

• 2 x 2.5” Drive Bay for SATA Type HDD/SSD RAID 0, 1, 5

• 1 x M.2 M key 2280 slot supports NVMe and SATA SSD

*Thermal heatsink is required for M.2 storage. Please contact sales representative for more information.

• Intel® UHD Graphics 630 for z9/i9/i7/i5/i3, Intel® UHD Graphics 610 for G5900TE

• NVIDIA® Quadro® RTX A4500 Mobile GPU

• NVIDIA® Quadro® RTX A2000 Mobile GPU

• NVIDIA® Quadro® RTX 3000 Mobile GPU

• NVIDIA® Quadro® T1000 Mobile GPU

• Max Resolution: 1920 x 1080 @ 60Hz without HDMI Audio

• -40ºC ~ 70ºC w/0.6 m/s airflow (for barebone system)

*The operating temp. varies by accessories installed.

Patent No. : M565941 – Thermal Cooling

• -40°C ~ 80°C

• 10% RH – 90% RH (non-condensing)

• IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

• MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating

• Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD

• 9V – 48V DC Power Input

• Automatics Recovery Short Circuit Protection

• Vehicle Power Ignition for Variety Vehicle

• Power off Delay Time Setting by BIOS and Software

• Internal Battery Kit for 10 Mins Operating

(Charging Temp. 0~45ºC, Discharging Temp. -10~60ºC)

*UPS backup time varies depending on actual overall system power consumption and battery is required to be charged before using.

Patent No. : M447854 – Build-in Battery

• Aluminum Alloy

• Wall-mount

• 5300g (Barebone)

• 260(L) x 250(W) x 95(H) mm

ABOX-5210xyy-zz (x= P= w/PoE, x= Empty= w/o PoE, yy=G6=RTX 3000, yy=G7=T1000, zz=Z9= W-1290TE, zz= i9= i9-10900TE, zz= i7= i7-10700TE, zz= i5= i5-10500TE, zz= i3= i3-10100TE, zz= C1= G5900TE)

Intel 10th Gen 10 Cores Xeon, i9 CPU w/ NVIDIA® Quadro® GPU Option/ 10 x GbE (Optional 8 x PoE)/ 3 x COM/ 3 x DP/ 2 x HDMI/ 4 x USB 3.2 Gen 5Gbps/ 9-48V Input AI GPU Computing

Made in Taiwan

DDR4 SO-DIMM, 4GB~32GB, -40~85°C

M.2 2280 Key B-M NVMe TLC -40~85°C 64GB~2TB w/ Heatsink

M.2 2280 Key B-M SATA TLC -40~85°C 64GB~2TB w/ Heatsink

2.5 inch SATA TLC -40~85°C 64GB~2TB

M.2 2230 Key A-E 802.11 a/b/g/n/ac, Wi-Fi 6E

M.2 3042 Key B 5G & LTE Module

MiniPCIe GPS Module

MiniPCIe CANBUS Module

BAT-5200 Battery Kit, 5200m/h, -30~60ºC, Discharge -20~60ºC, Operating About 10 Mins

AC/DC 24V Power Adapter
