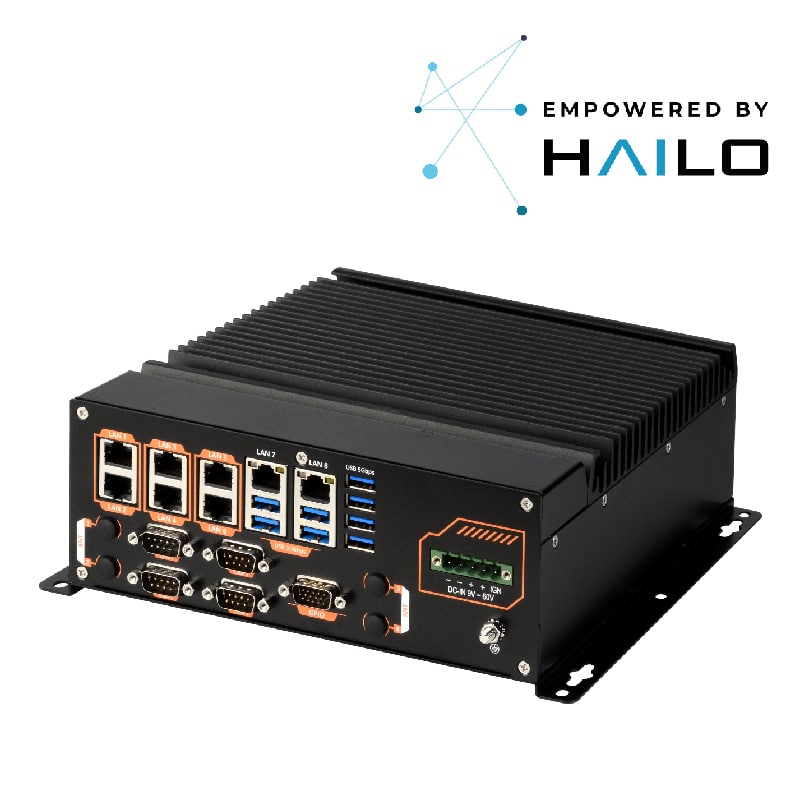

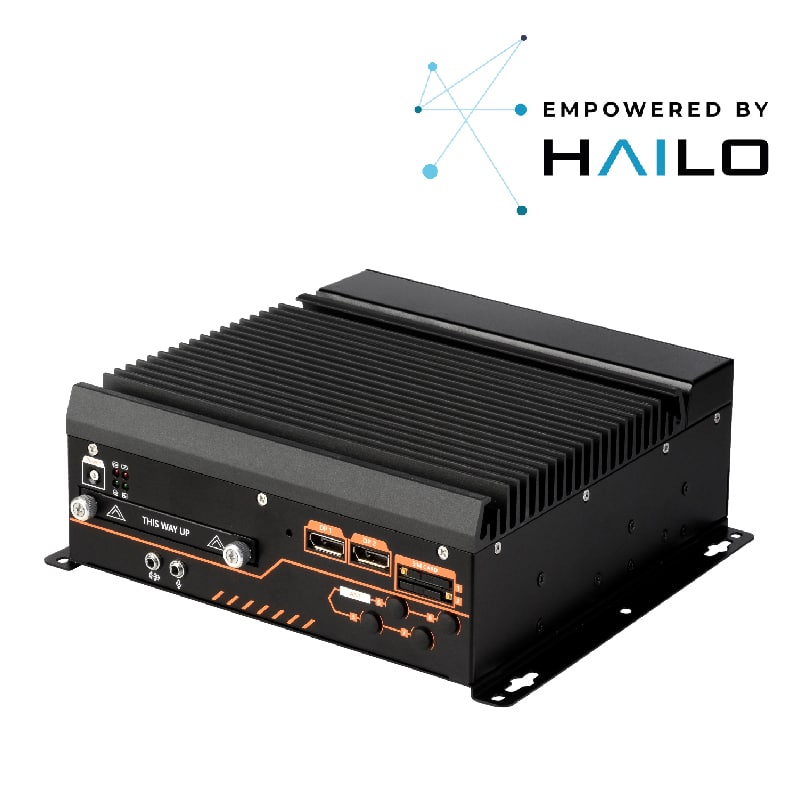

Edge AI Rugged Computer

ABOX-5211(P)

10th Gen Intel® Core™ i9-10900TE (20M Cache 2.0GHz up to 4.5GHz)
10th Gen Intel® Core™ i7-10700TE (16M Cache 2.0GHz up to 4.4GHz)
10th Gen Intel® Core™ i5-10500TE (12M Cache 2.3GHz up to 3.7GHz)
10th Gen Intel® Core™ i3-10100TE (6M Cache 2.3GHz up to 3.6GHz)
Intel® Celeron® Processor G5900TE (2M Cache 3.0GHz)

Q470E

2 x DDR4 3200MHz SO-DIMM up to 64GB

1 ~ 255 Level Reset

2.0

Intel® UHD Graphics 630 for i9/i7/i5/i3
Intel® UHD Graphics 610 for G5900TE

2

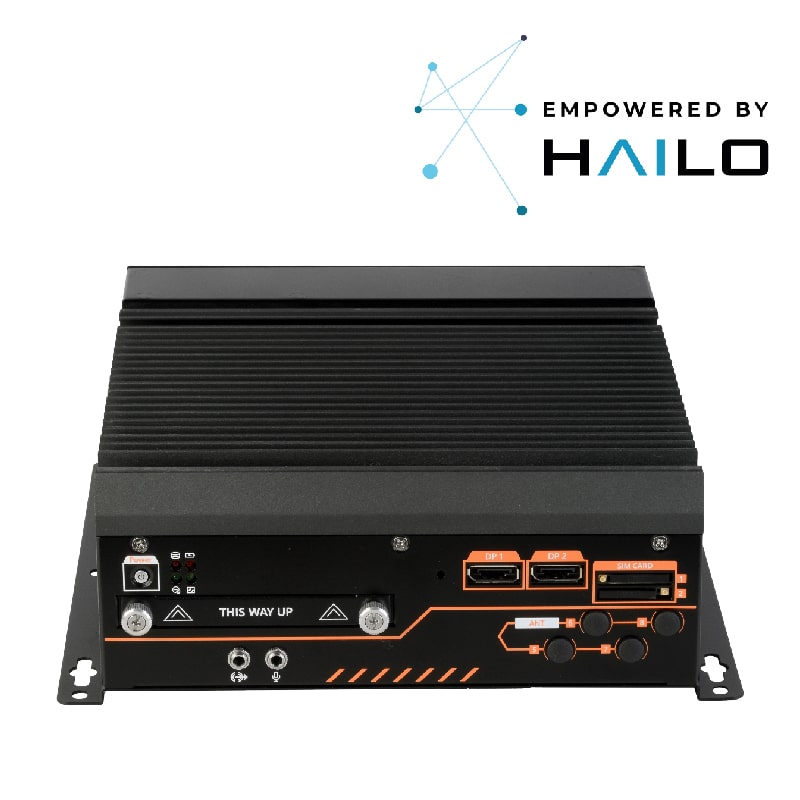

Max Resolution (DP 1.2) : 4096 x 2340 @ 60Hz

1

1

7 x Intel® i210-AT and 1 x i219LM (support iAMT) Gb/s
Ethernet Controllers Onboard Support PXE and WOL

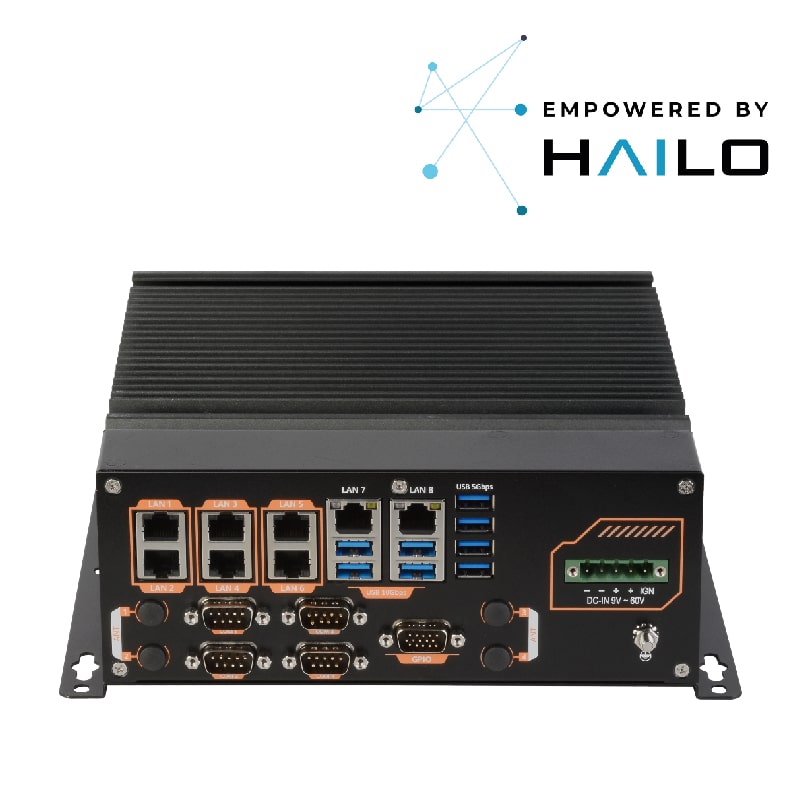

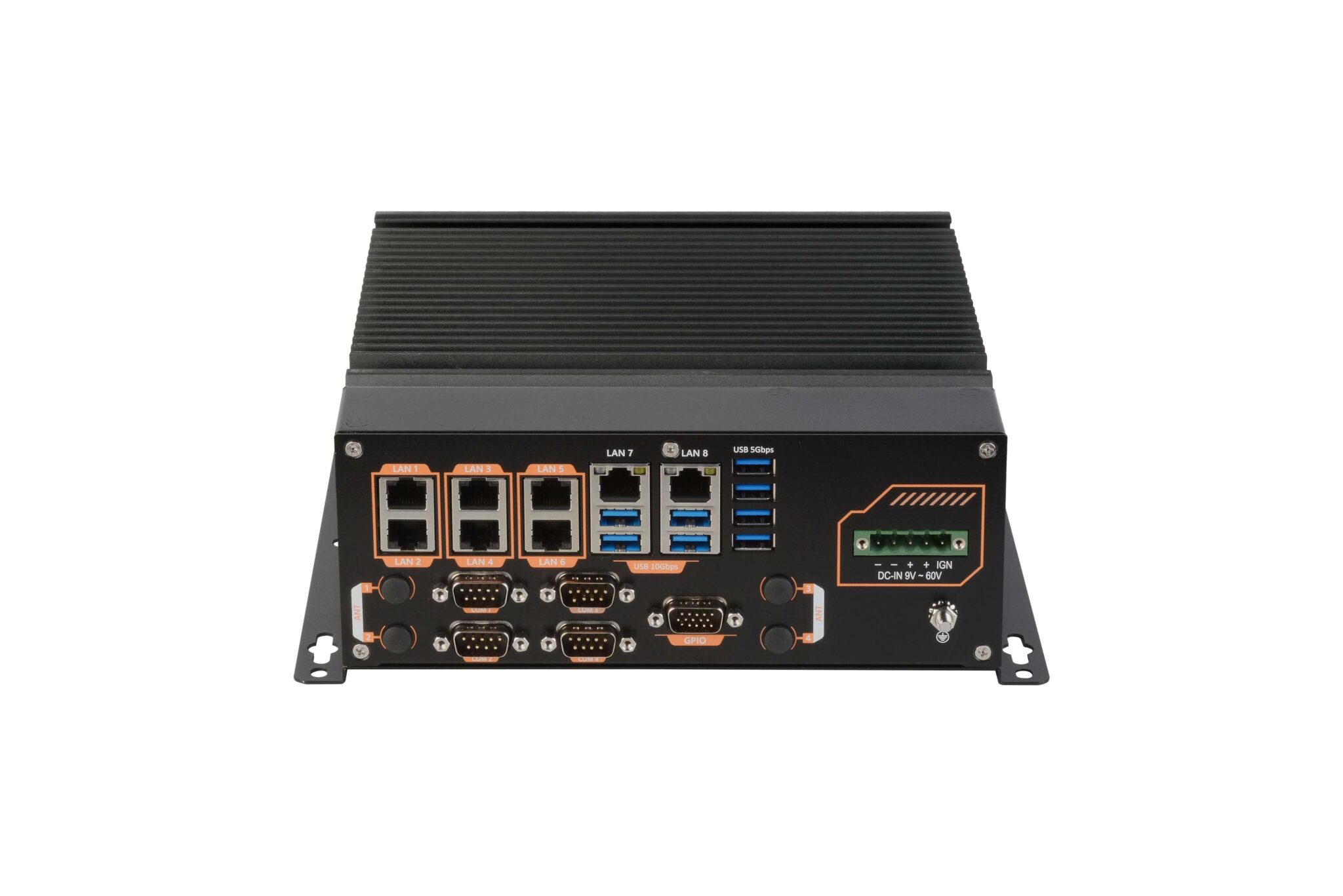

8 x RJ45 Ports for GbE (Optional 8 x POE total Max.120W)

4 x RS 232/422/485

4 x USB 3.2 10Gbps
4 x USB 3.2 5Gbps

8 x DI (5~60VDC)
4 x DO (5VDC, 100mA)

1 x 2.5″ Drive Bay for SATA Type HDD/SSD (Rear Panel)

2 x M.2 2280 M Key supports NVMe
1 x M.2 2280 Key M supports NVMe/SATA

* Thermal heatsink is required for M.2 storage. Please contact sales window for more information.

** Support SATA Raid 0/1

2 x Full Mini-PCle Slots (Support DIP Switch Enabled/Disabled SMBus Interface)

1 x M.2 B Key 3042/3052 for WWAN (USB3.0) with Dual SIM Slot
1x M.2 E Key 2230 slot for Wi-Fi (PCIe + USB)

9V – 60V DC Power Input

Automatics Recovery Short Circuit Protection

Vehicle Power Ignition for Variety Vehicle

Power off Delay Time Setting by BIOS and Software

Internal Battery Kit for 10 Mins Operating
(P/N: BAT-5200 kit, Operating Temp. Charging 0~45°C, Duscharging -20 ~ 60°C)
* UPS backup time varies depending on actual overall system power consumption.

240(L) x 242(W) x 85(H) mm

3680g (Barebone)

Aluminum Extrusion with Steel Chassis

Wall-mount

10% RH – 90% RH (non-condensing)

-40°C ~ 70°C w/0.6 m/S airflow
*Operating temp. varies by accessories installed.

-40°C ~ 80°C

IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating

CE, FCC Class A, E-Mark

Windows 10 & 11 IoT Enterprise 64bit

Ubuntu 20.04 LTS 64bit

ABOX-5211x-yy

(x=P=w/PoE, x=Empy=w/o PoE, yy=i9=i9-10900TE, yy=i7=i7-10700TE, yy=i5=i5-10500TE, yy=i3=i3-10100TE, yy=C1=G9500TE)

10th Gen Intel® 10-Cores i9-10900TE / 8 x GbE (Optional 8 x PoE) / 2 x DP / 4 x USB 3.2 10Gbps / 4 x USB 3.2 5Gbps 9-60V Input AI Computing

Taiwan

DDR4-3200 MHz SO-DIMM, 4GB~32GB, -40~85C

M.2 AI Acceleration Module

M.2 2230 A-E Key 802.11 a/b/g/n/ac, Wi-Fi 6E

M.2 3042 B key 5G & LTE Module

MiniPCle CAN Bus Module

BAT-5200 Battery Kit, 5200mAh, Charge 0~45C, Discharge -20~60C
