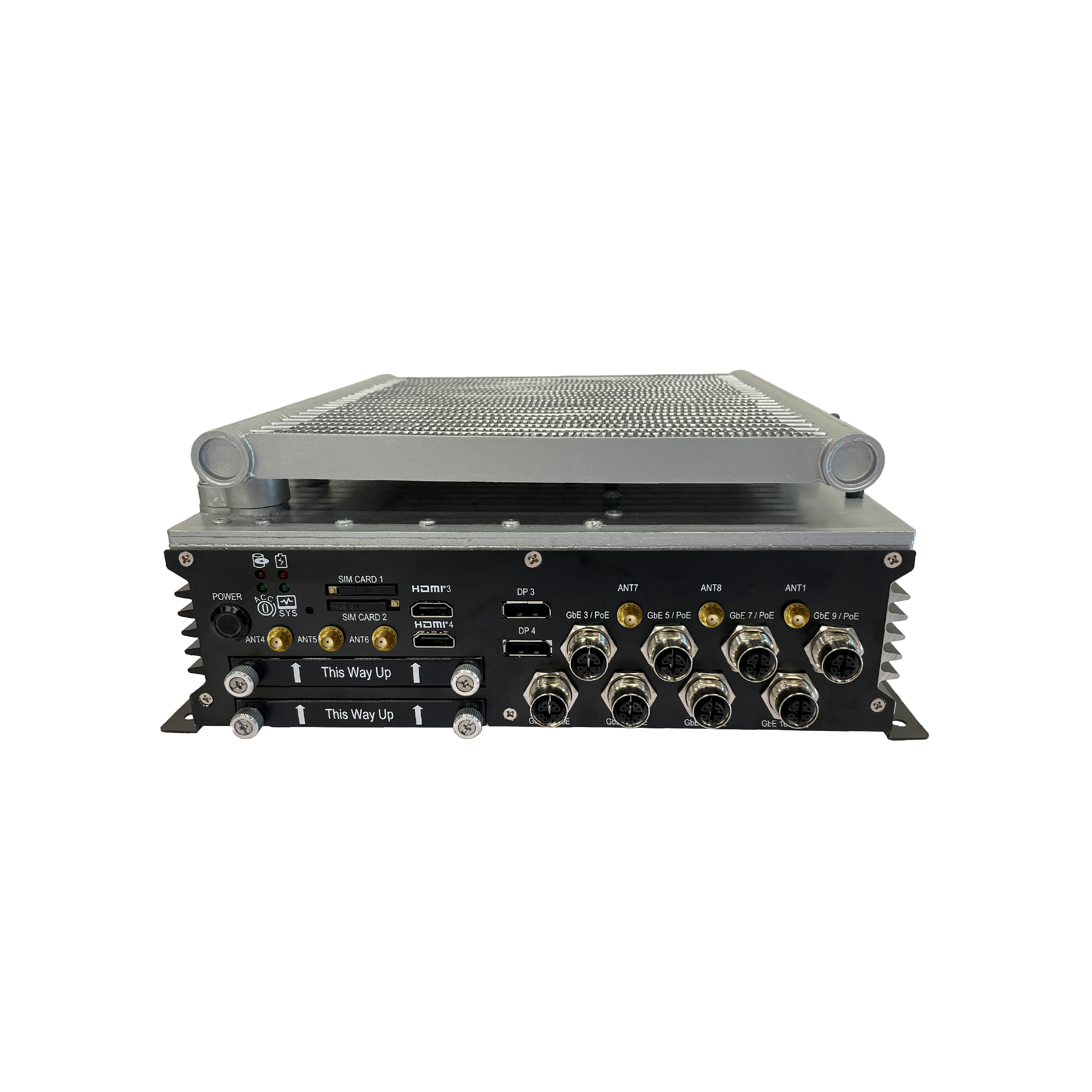

Edge AI Rugged Computer

ABOX-5221(P)(G) LC Series

• Intel® Core™ (14th gen) i9-14900T 24C/32T processor
• Intel® Core™ (14th gen) i7-14700T 20C/28T processor
• Intel® Core™ (14th gen) i5-14500T 14C/20T processor

• Processor-integrated GPU –

Intel® UHD Graphics 770

• Optional discrete GPU –

NVIDIA RTX™ Embedded 2000 Ada / 3500 Ada / 5000 Ada

Intel® Arc™ A370E

• R680E

• 2 x DDR5-5600 SO-DIMM up to 96GB
(ECC support with ECC DRAM)

• TPM 2.0, dTPM

• Auto reset for unresponsive system
(custom 1-255 sec/min settings in BIOS)

• Without discrete GPU –

2 x HDMI® up to 3840 x 2160 @ 60Hz as specied in HDMI 2.0b

• With discrete GPU –

Additional 2 x DP++ up to 7680 x 4320 @ 60Hz

• 1 x Line-out, 1 x Line-in, 1 x Mic-in

• 2 x 10GbE (Marvell AQC113) via RJ-45 (optional M12 X-code)
• 4 x 2.5GbE (Intel I226) via RJ-45 (optional PoE+ and M12 X-code)
* ETH3 supports Intel® AMT
** All Ethernet ports support PXE boot and Wake-on-LAN
*** PoE supports 25.5W per port with total power budget: 120W

• 8 x USB 3.2 Gen 2

• 8 x DI (DC 5-60V), 8 x DO (DC 5V/100mA)

• 2 × RS-232/422/485

• 1 x M.2 2280 Key M for NVMe/SATA SSD
• 2 x M.2 2280 Key M for NVMe SSD
• 2 x Removable tray for 2.5″ SATA SSD
* RAID 0/1/5 support via Intel® VMD.

• DC 9-60V input (nominal power input DC 12V/24V/48V) via 5-pin terminal block
* Nominal power input of DC 24V or above is required for system with discrete GPU and PoE

• OCP, OVP, surge protection, reversed polarity protection

• Ignition detection, Smart Power Management

• Front removeable tray for RTC coin cell battery

• Optional battery kit for up to 10 minutes emergency backup time
(Battery charging Temp. 0°C~45°C and discharging Temp. -10°C~60°C)
* BBU backup time varies depending on actual overall system power consumption
and battery is required to be charged before being used for system power backup
** Operating temperature will be limited within -10°C and 60°C with the battery kit installed.
Patent No.: M447854 (Built-in battery)

• Windows 11 IoT Enterprise LTSC
• Ubuntu 22.04 LTS

• -40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
* Operating temperature varies by accessories installed.

• -40°C ~ 85°C (-40°F ~ 176°F)

• 10% RH ~ 90% RH (non-condensing)

• IEC 60068-2-64, random, 2.5G (Z) 0.21G (Y) 0.76 (Z)@5~500Hz, 1hr/axis
• MIL-STD-810H, Method 514.8, Category 4
• EN 61373:2010, Clause 8

• MIL-STD-810H, Method 516.8, 20G (11ms)
• EN 61373:2010, Clause 10

• Aluminum Alloy

• 7 x SMA connector mounting hole

• Wall mounting

• 5.70 kg (12.57 lb)

• 290 x 250 x 98 mm (11.42 x 9.84 x 3.86 in.) with mounting brackets

• IP40

ABOX-5221(P)(G)(-M12X)-zz (P= w/ PoE, G=w/ Discrete GPU, M12X=w/ M12 X-coded connectors,
zz=i9=i9-14900T, zz=i7=i7-14700T, zz=i5=i5-14500T

Intel® Core™ Processors (14th Gen) with Discrete GPU Options and High-Bandwidth 10GbE Edge AI Computer

Made in Taiwan

DDR5-5600 SO-DIMM, 8GB to 48GB, -40°C ~ 85°C (ECC option available)

M.2 2280 Key M NVMe SSD w/ thermal kit, -40°C ~ 85°C
M.2 2280 Key B-M SATA SSD w/ thermal kit, -40°C ~ 85°C
2.5″ SATA SSD, -40°C ~ 85°C

M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C

M.2 3042/3052 Key B WWAN module w/ thermal kit, -40°C ~ 85°C

M.2 2242 Key B GNSS module, -40°C ~ 85°C
Mini PCIe GNSS module, -40°C ~ 85°C

Mini PCIe CAN module, -40°C ~ 85°C

BAT-5200 battery kit, charging Temp. 0°C ~ 45°C, discharging Temp. -10°C ~ 60°C

AC/DC 100-240V/24V 280W C14 bare wire power adapter
