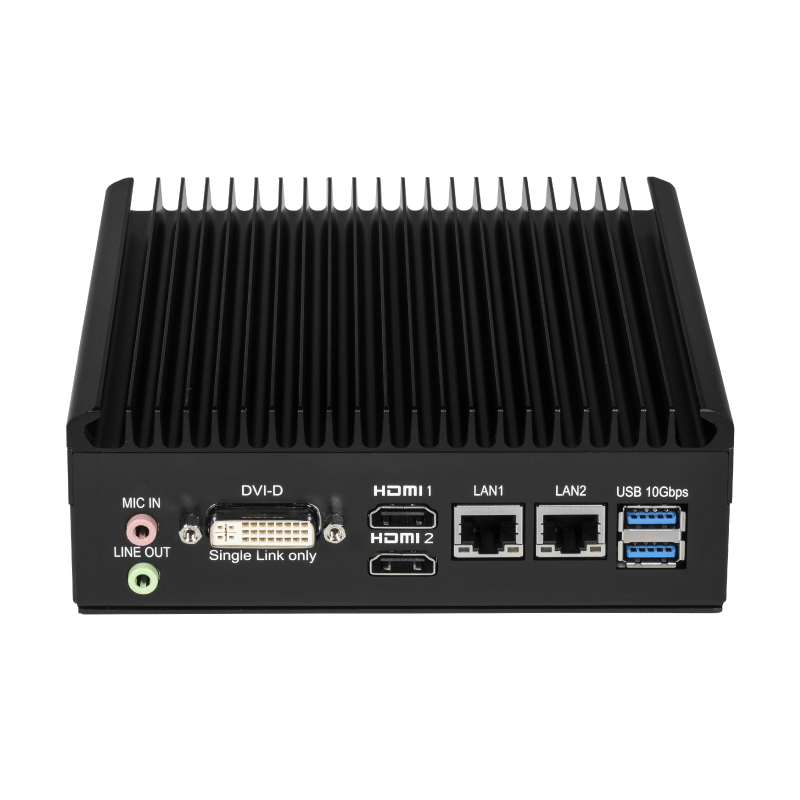

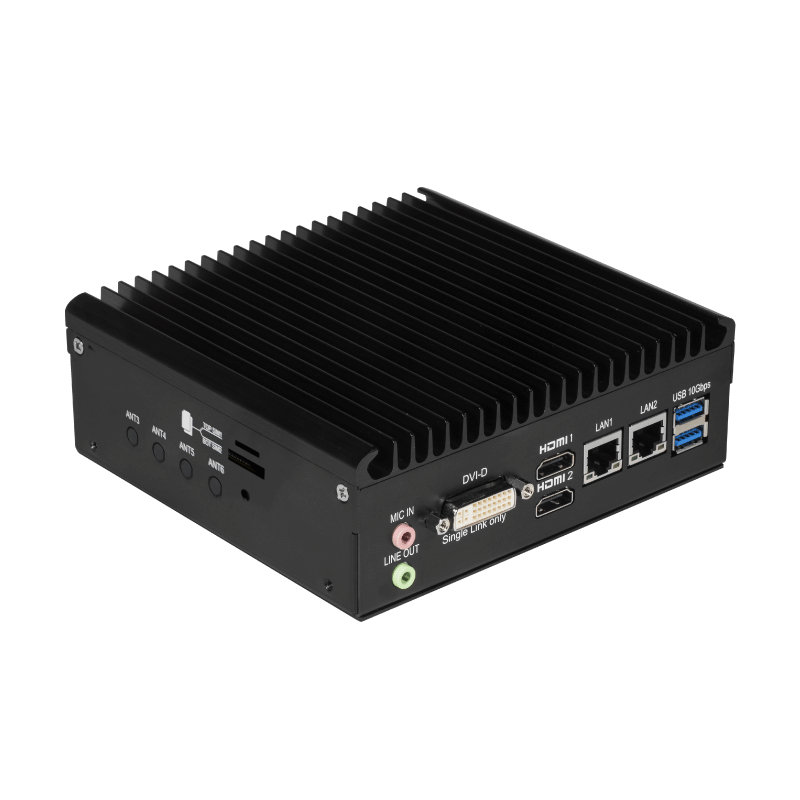

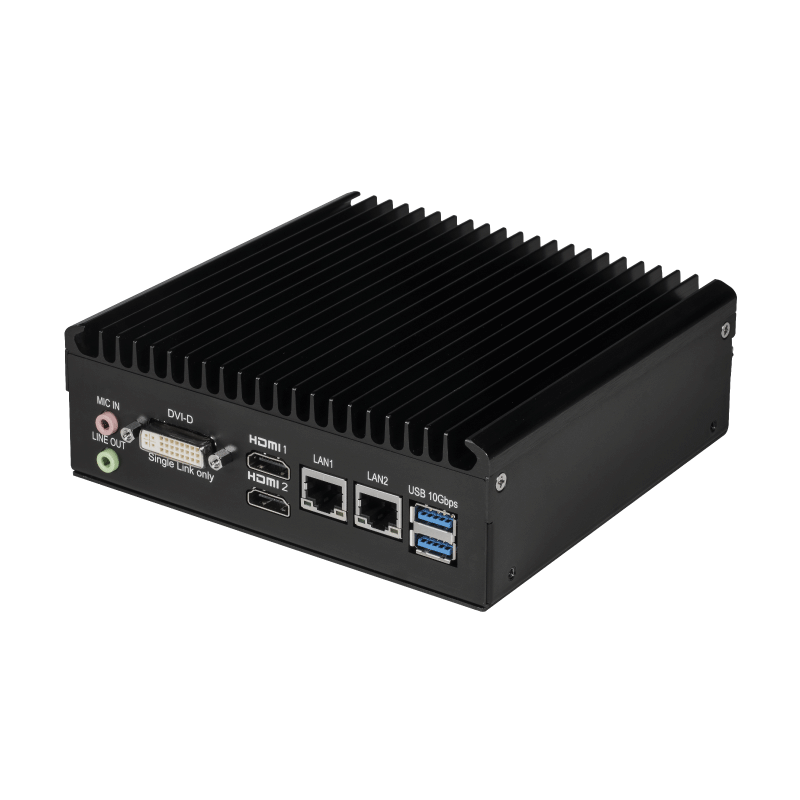

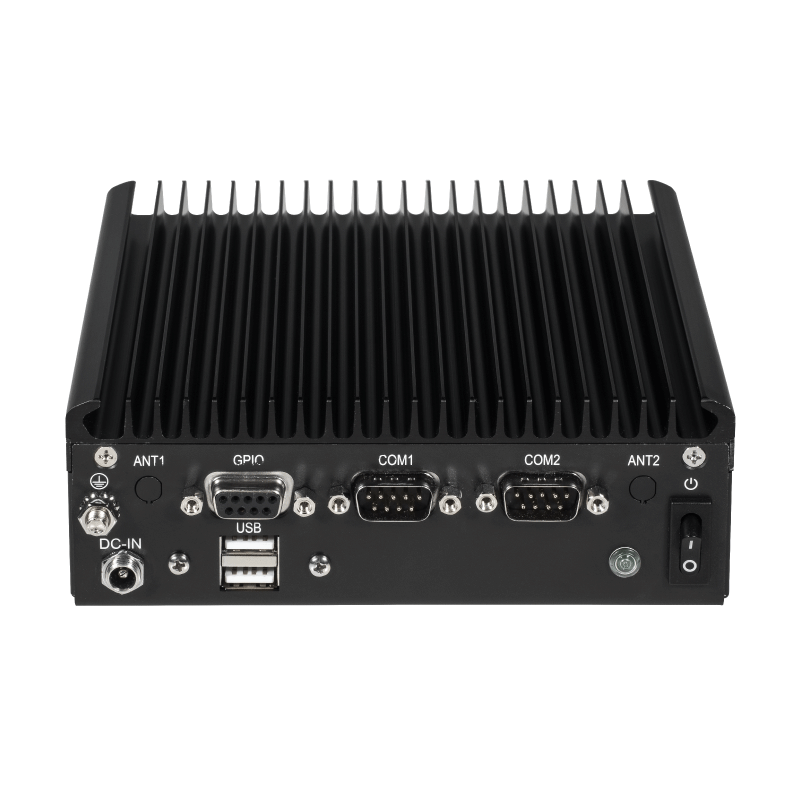

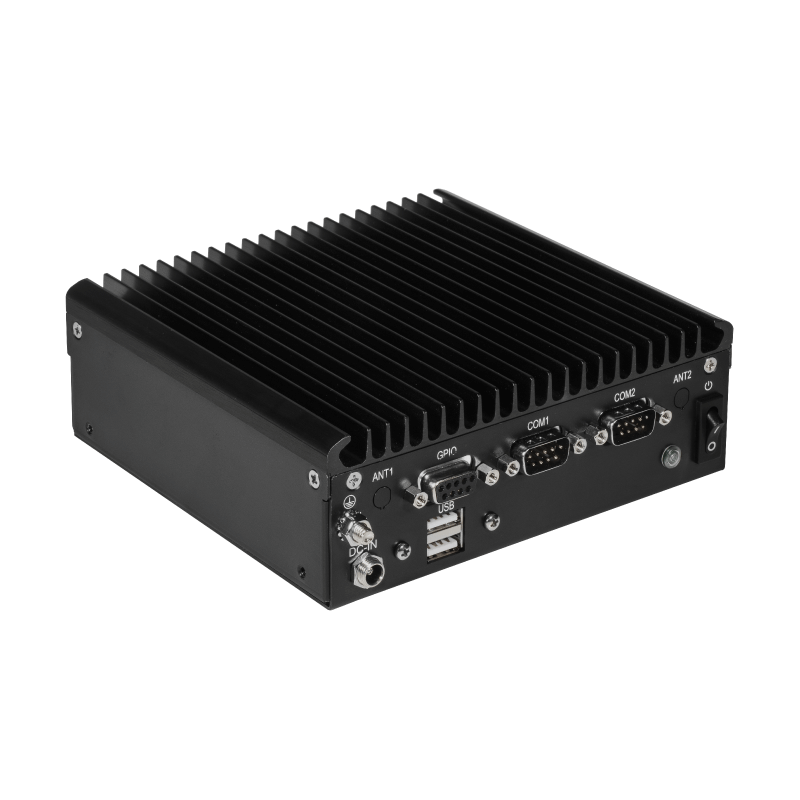

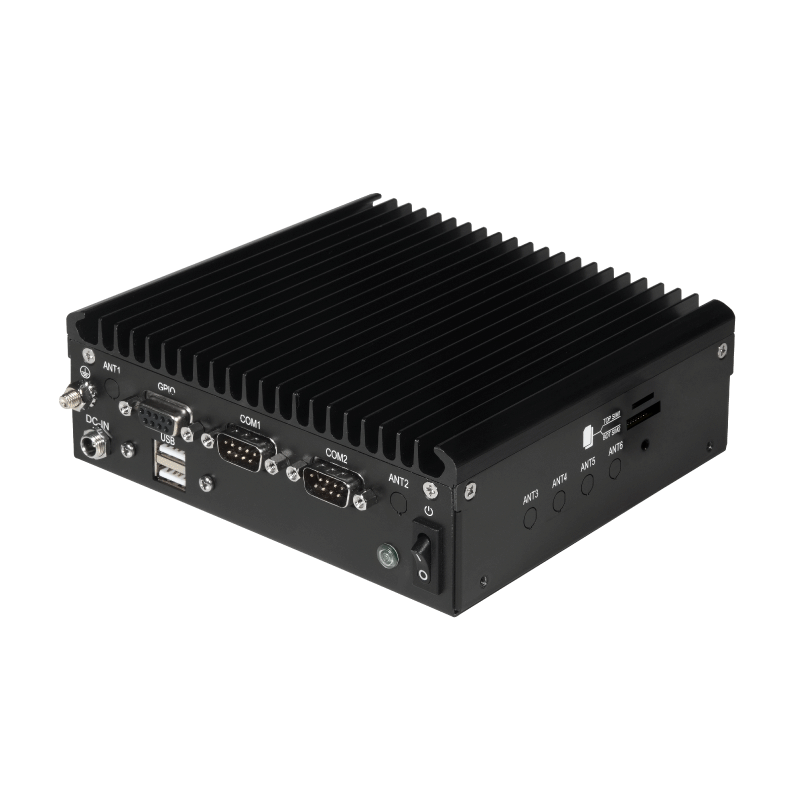

Rugged Industrial Computer

SBOX-2603-R2312

• AMD Ryzen™ Embedded R2312 2C/4T Processor

• CPU Built-in Graphics AMD Radeon™ Graphics

• 1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM)

• TPM 2.0

• System power on/o 1 ~ 255 min setting by BIOS

• 1 x DVI-D (Single link with custom pin define)

• 2 x HDMI® supports 4K@60Hz as specified in HDMI 2.0b

• 1 x Line-out and 1 x Mic-in

• 2 x I210-AT GbE RJ45 port

• 2 x USB 3.2 Gen 2 (10Gbps)
• 2 x USB 2.0

• 1 x GPIO port supporting 4 x GPI and 4 x GPO (5VDC TTL)

• 2 x RS-232/422/485

• 1 x M.2 2280 Key M supports NVMe or SATA SSD

• 1 x 2.5” SATA SSD

• DC 12V only via DC Jack

• Windows 10 IoT Enterprise 64bit LTSC

• Windows 11 IoT Enterprise LTSC

• Ubuntu 20.04 LTS 64bit

• -30 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system)

• -40 ~ 85°C

• 10% RH ~ 90% RH (non-condensing)

• Aluminum Alloy

• Wall-mount (Optional VESA and Din Rail Mounting Kit)

• 1.3Kg

• 176 (L) x 140 (W) x 52 (H) mm

SBOX-2603-R2312

AMD Ryzen™ Embedded R2312 w/ 1x DVI-D / 2x HDMI® / 2x GbE / 2x COM / DC 12V Embedded Computer

Made in Taiwan

DDR4-2400/2666/3200 SO-DIMM, 8GB~32GB, -40~85°C (ECC Option Available)

M.2 2280 Key B-M NVMe TLC -40~85°C 512GB~2TB

M.2 2280 Key B-M SATA TLC -40~85°C 128GB~2TB

2.5 inch SATA TLC -40~85°C 128GB~2TB

M.2 2230 Key E 802.11 a/b/g/n/ac, Wi-Fi 6E

M.2 3042 Key B LTE (USB) / 3052 Key B 5G (USB) with Thermal Kit

60W 100-240VAC to 12VDC Power Adapter
