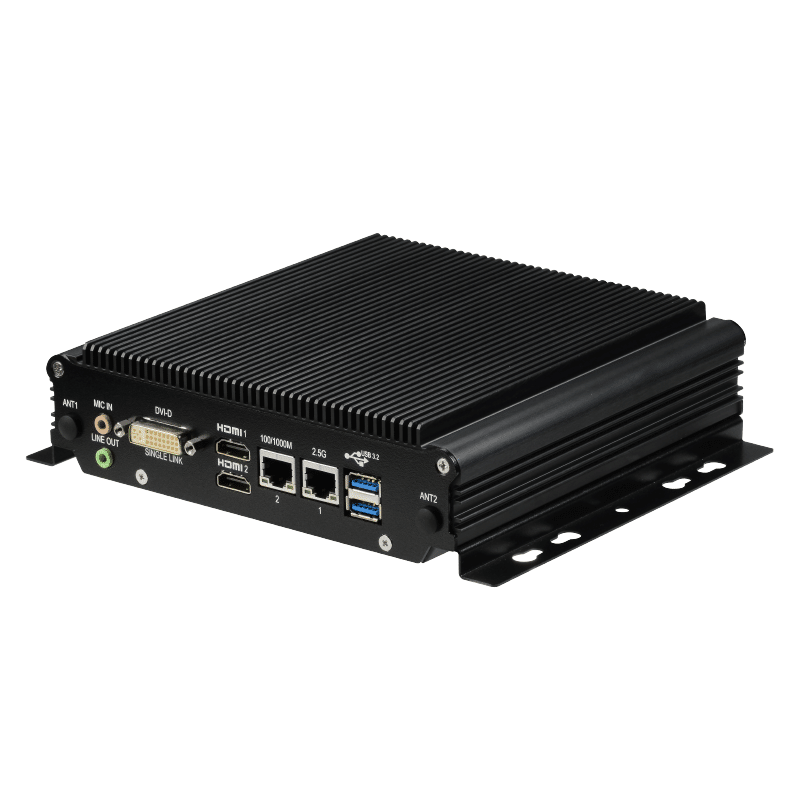

Rugged Industrial Computer

SBOX-2622

Intel® Core™ i7-1185G7E up to 2.8 GHz*

Intel® Core™ i5-1145G7E up to 2.6 GHz*

Intel® Core™ i3-1115G4E up to 3.0 GHz*

Intel® Celeron® 6305E

*CPU TDP is configured at 15W as default setting.

1 x DDR4 SO-DIMM up to 32 GB

Intel® Iris® Xe Graphics (for Core™ i7 / i5 SKU)

Intel® UHD Graphics (for i3 / Celeron® 6305E SKU)

1 x Intel® 2.5GbE

1 x lntel® GbE

1 ~ 255 Level Reset

2.0

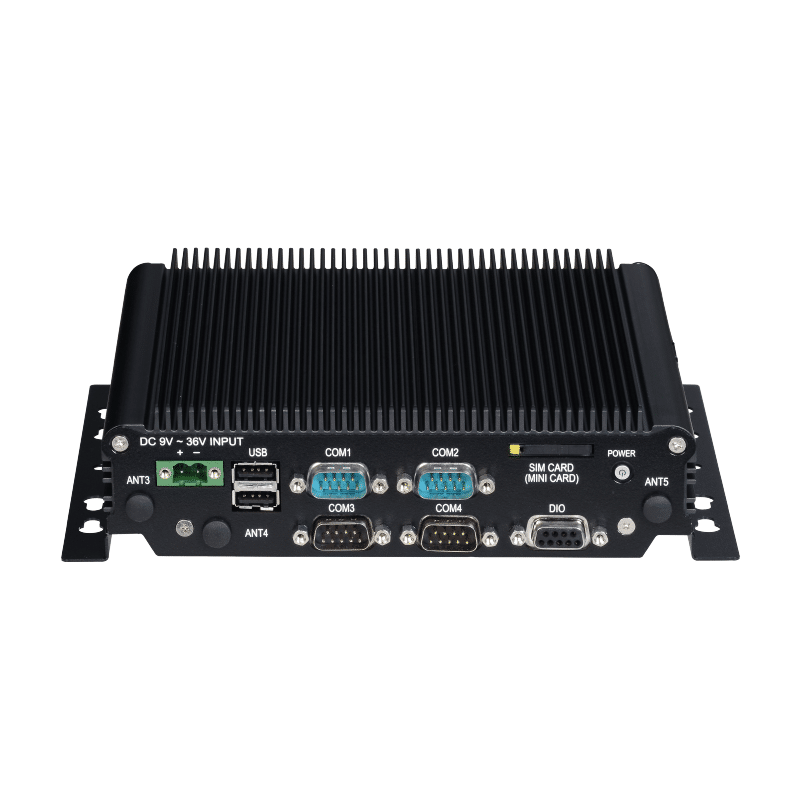

4 x RS-232/422/485

2 x USB 2.0 and 2 x USB 3.2 Gen 2

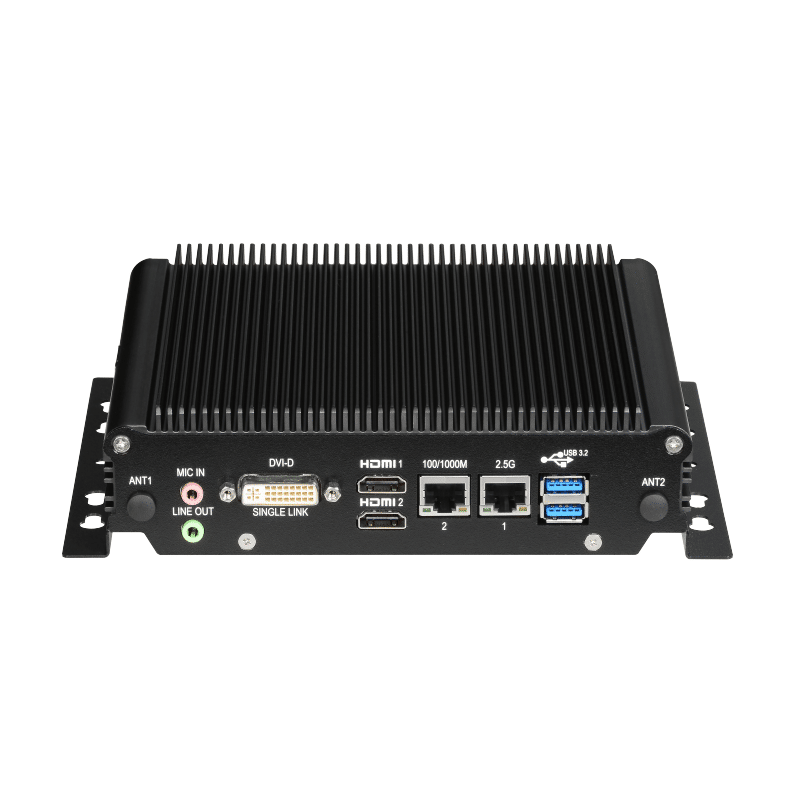

2 x RJ-45 Ethernet (1 x 2.5GbE, 1 x GbE)

2 x HDMI 2.0b / 1 x DVI-D*

*Single-Link cable only

1 x GPIO port supporting 4 x GPI and 4 x GPO (5VDC TTL)

1 x MIC-IN and 1 x Line-OUT

1 x M.2 3042/52 Key B Slot for WWAN Modem 2 x SIM Card Slots

1 x M.2 2230 Key E for Wi-Fi w/ Bluetooth Module

1 x mPCIe Slot (USB 2.0 Interface) w/ 1 x SIM Card Slot

5 x Pre-cut holes for External SMA Antenna

Windows 10 IoT 2021 LTSC 64-bit, Windows 11 IoT Enterprise LTSC Ubuntu 20.04.6/22.04 LTS 64-bit

-30 ~ 60°C, Ambient w/ 0.6m/s Airflow

-40 ~ 85 °C

10% RH – 90% RH (Non-condensing)

DC 9~36V Input w/ Reverse Polarity OCP and OVP Protection

1 x SATA Connector for 2.5″ SATA HDD/SSD

1 x M.2 2280 Key M Slot (supports NVMe or SATA SSD)

Aluminum Alloy

Wall-mounting (optional VESA and DIN-rail mounting kit)

1750g

210 (L) x171 (W) x 50 (H) mm (Wall mounting bracket included)

SBOX-2622-i7, SBOX-2622-i5, SBOX-2622-i3, SBOX-2622-C1

11th Gen Intel® Core™ Processors i7-1185G7E CPU w/ 2x LAN/ 2x HDMI 2.0b/ 1x DVI-D/ 4x COM/DC 9-36V Input/ Fanless Box PC

Taiwan

DDR4 SO-DIMM 3200, 8GB~32GB (-40~85°C)

M.2 2280 Key B+M SATA SSD TLC 64GB~1TB (-40~85°C)

M.2 2280 Key M NVMe TLC 256GB~1TB (-40°~85°C)

M.2 2230 Key A+E Module

M.2 3042/3052 Key B Module

DIN Rail / VESA Kit

mPCle CAN Bus Module
