Rugged Industrial Computer

SBOX-2624(P)

AMD Ryzen™ Embedded R2312 2C/4T Processor

CPU Built-in Graphics AMD Radeon™ Graphics

1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM)

TPM 2.0

System reset 1 ~ 255 sec. or min. settings in BIOS

• 2 x HDMI® supports 4K@60Hz as specified in HDMI 2.0b

1 x Line-out and 1 x Mic-in

1 x 2.5GbE, 1 x GbE (SBOX-2624)

1 x 2.5GbE, 4 x GbE * from Marvell Ethernet Switch w/PoE (PSE Class 3:15W) via RJ-45 (SBOX-2624P)

*Share with 1GbE bandwidth; Power budget: 60W

• 2 x USB 3.2 Gen 2 (10Gbps)
• 2 x USB 2.0

4 x DI (5-36VDC), 4 x DO (5V, 100mA)

• 2 x RS-232/422/485, 4 x RS-232 (SBOX-2624)
• 2 x RS-232/422/485, 2 x RS-232 (SBOX-2624P)

• 1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Nano SIM
• 1 x M.2 2230 Key E supports PCIe and USB2.0 Wi-Fi/BT

• 1 x M.2 2280 Key M supports NVMe or SATA SSD
• 1 x 2.5” SATA SSD (SBOX-2624)

DC-IN 9 – 36V Input (Nominal Power Input 12V or 24V)

Over voltage and reverse polarity protection

• Windows 10 IoT Enterprise 64bit LTSC

• Windows 11 IoT Enterprise LTSC

• Ubuntu 20.04 LTS 64bit

• Ubuntu 22.04 LTS 64bit

-30 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system)

-40 ~ 80°C

10 ~ 90% @ 40°C (non-condensing)

Aluminum Alloy

Wall-mounting

1.500g (barebone)

150(L) x 150(W) x 65(H) mm

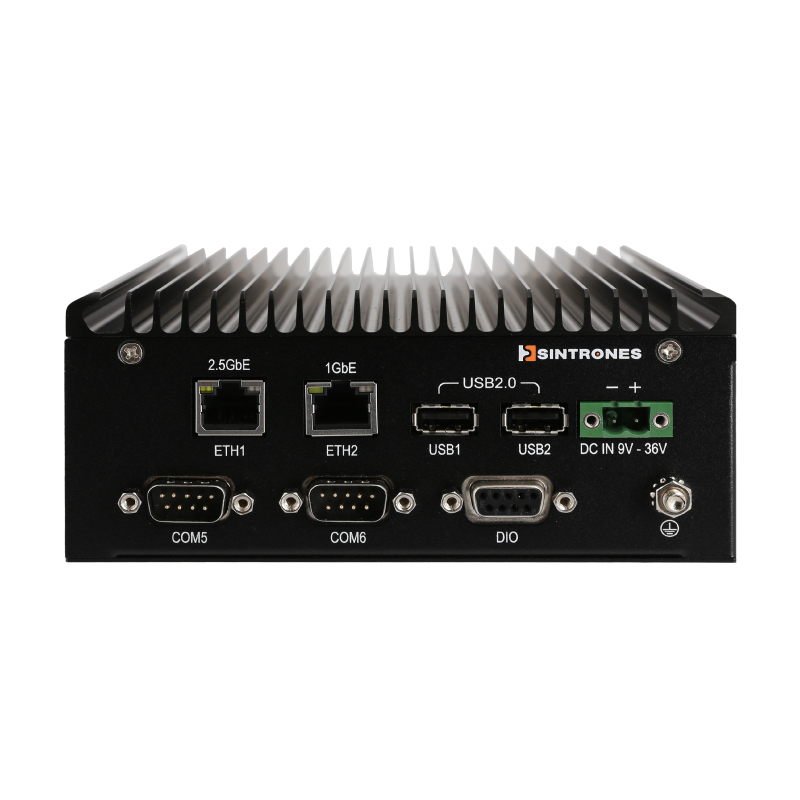

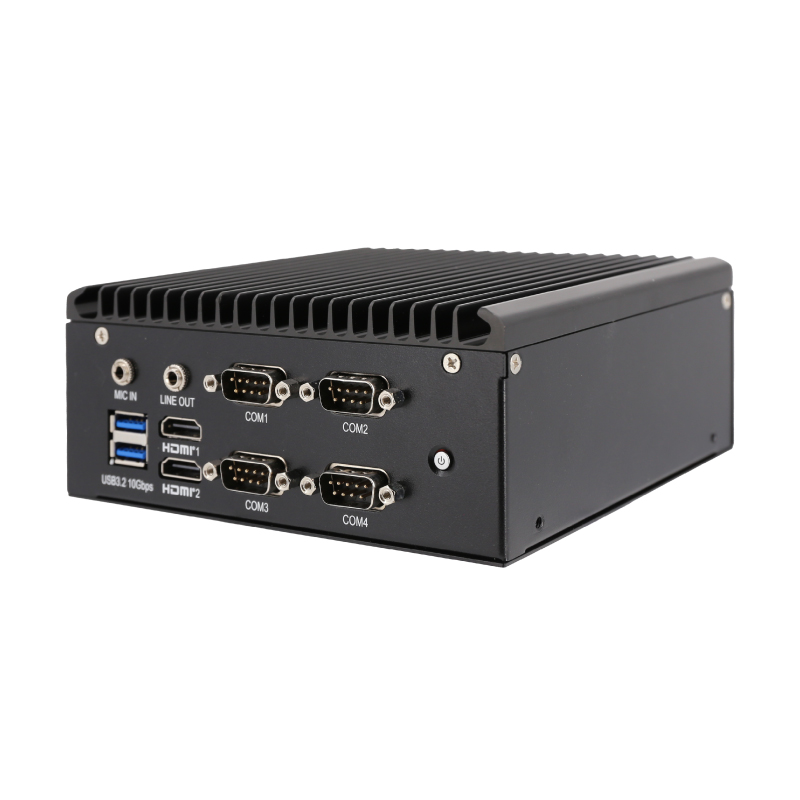

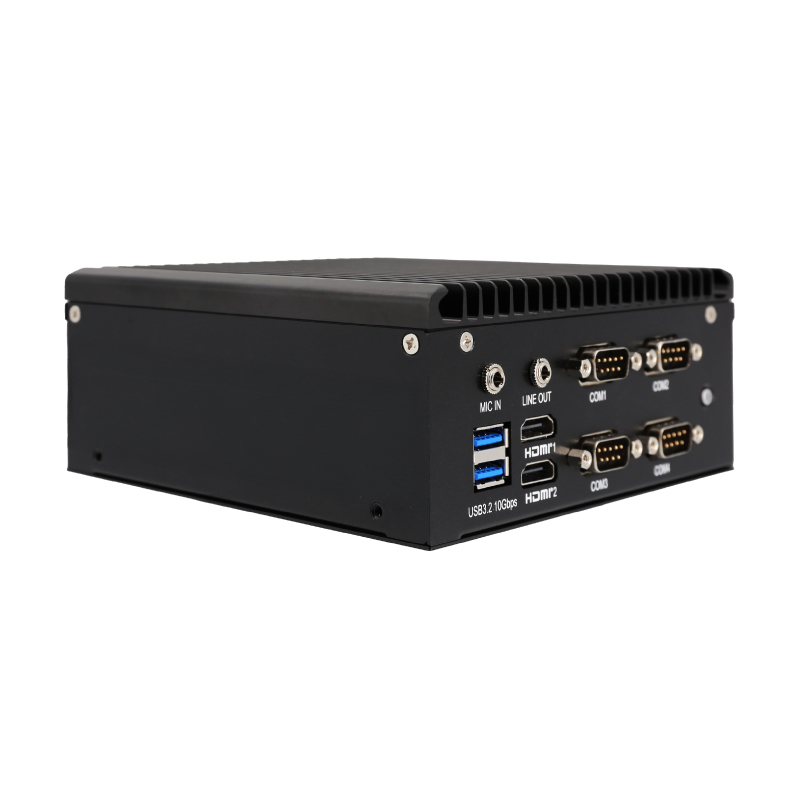

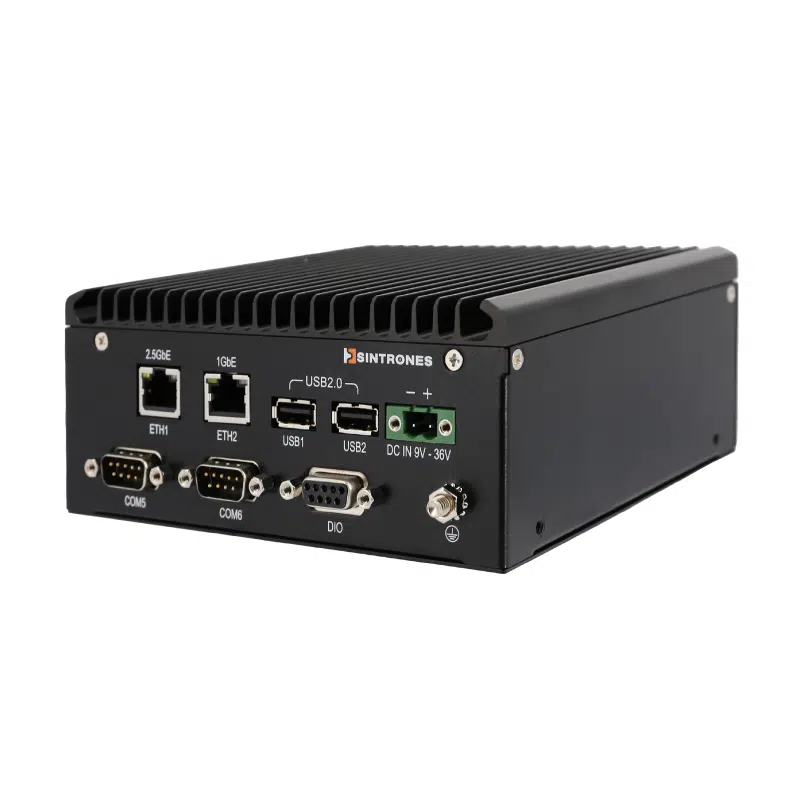

SBOX-2624

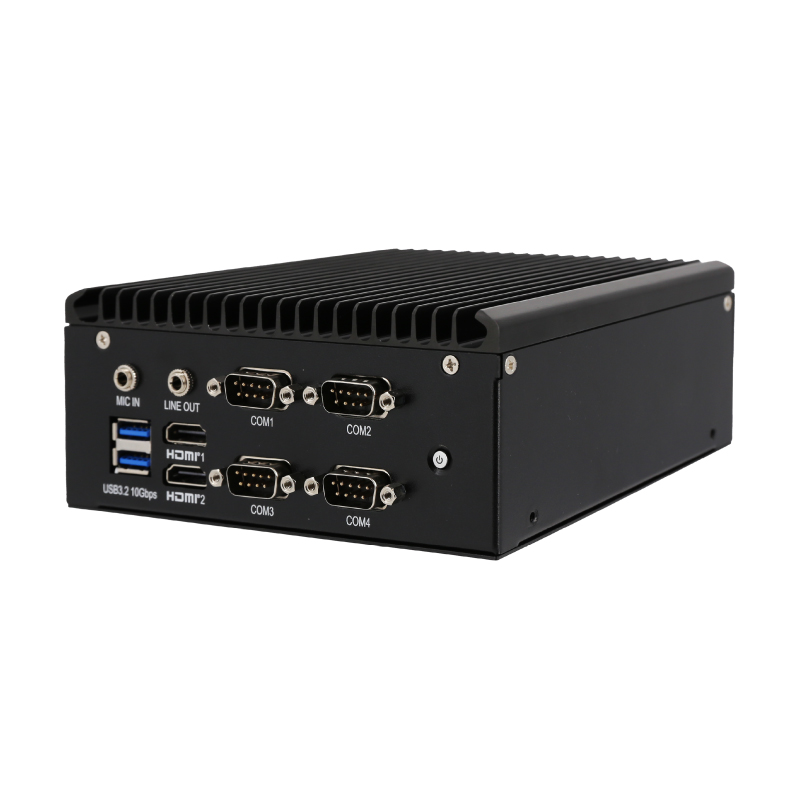

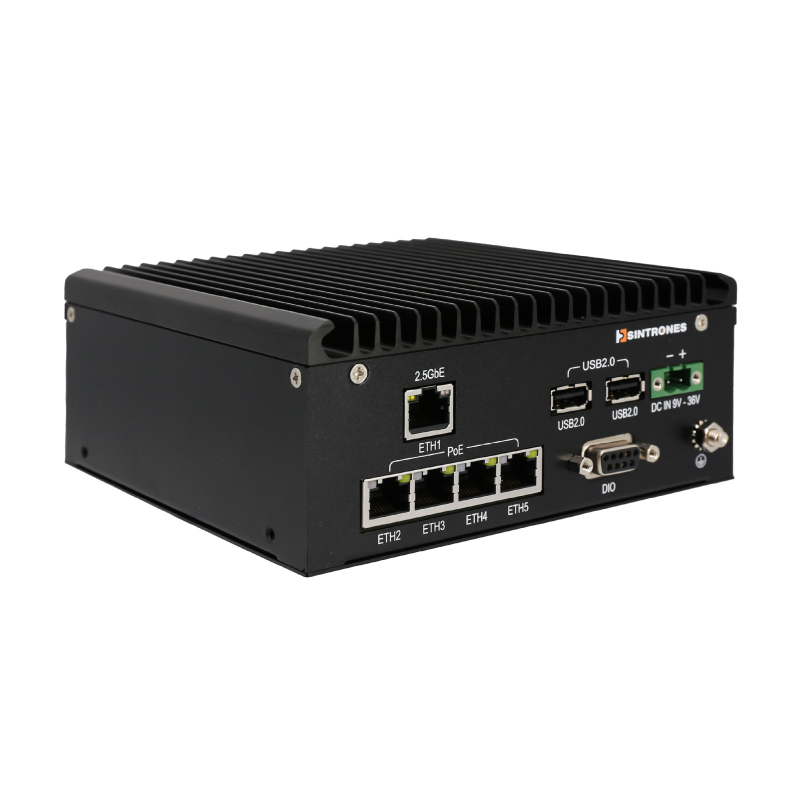

SBOX-2624P

Made in Taiwan

DDR4-2400/2666/3200 SO-DIMM, 8GB~32GB, -40~85°C (ECC Option Available)

M.2 2280 Key B-M NVMe TLC -40~85°C 512GB~2TB

M.2 2280 Key B-M SATA TLC -40~85°C 128GB~2TB

2.5 inch SATA TLC -40~85°C 128GB~2TB

M.2 2230 Key A+E Wi-Fi 6 + Bluetooth 5.2 module

M.2 3042/52 5G/LTE modem
