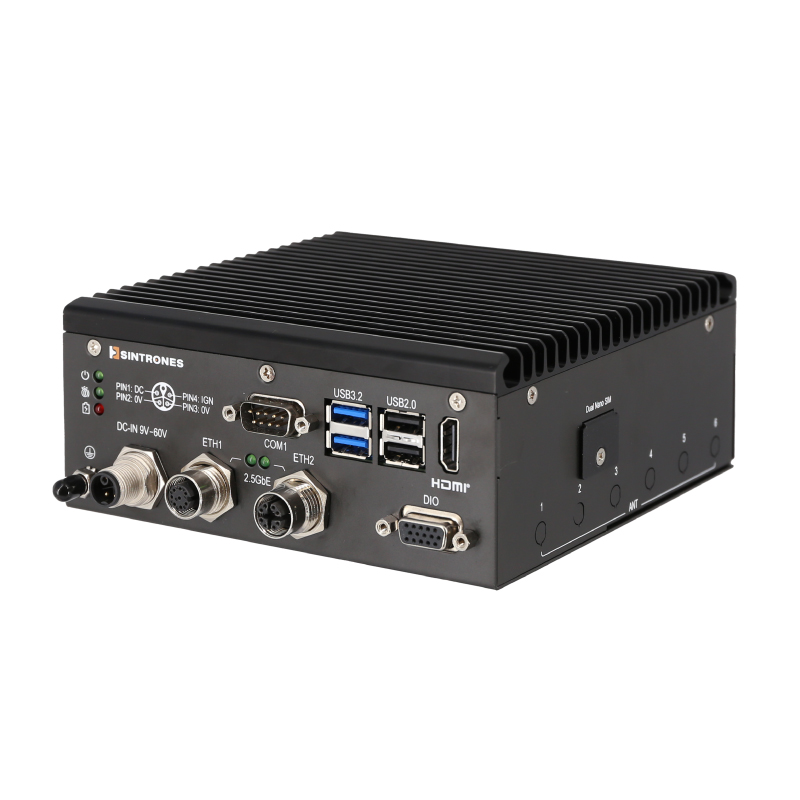

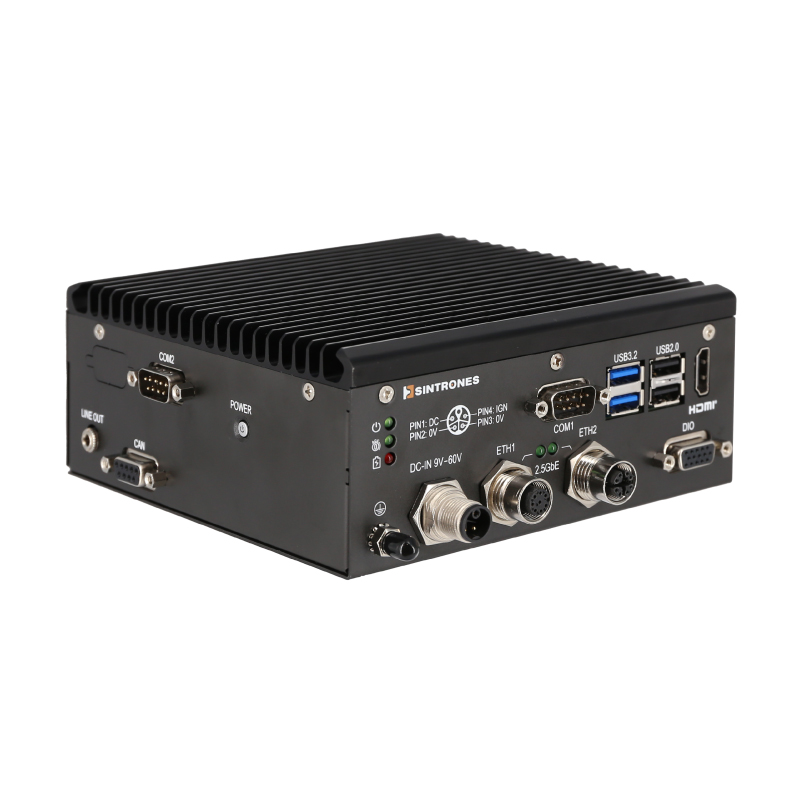

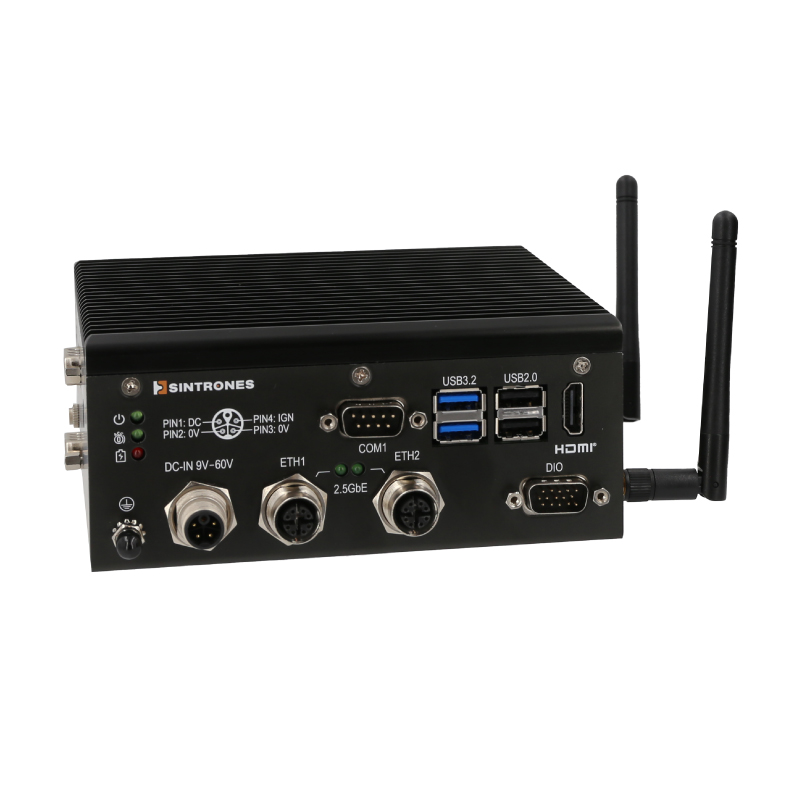

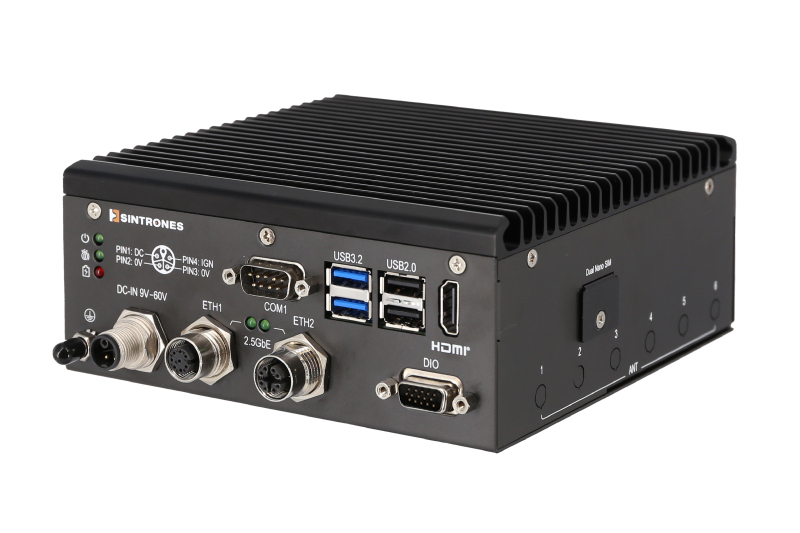

Intel Atom® x7000RE DIN-rail PoE Fanless Rugged Edge Computer
• Industrial Grade Amston Lake Processor and Ethernet Controller
• Intel® Twin Lake Processor SKU Available
• 1 x 2.5GbE, 4 x PoE Ports for IoT Devices Connectivity
• 1 x Built-in CAN FD for Vehicle Device Communication
• Dual NVMe SSD Support for NVR Applications
• Built-in Watchdog and Smart Power Management for System Health Monitoring
• Supports DIN-rail and Wall-mount Installation
Intel Atom® x7835RE Octa-core Processor up to 3.6 GHz
Intel Atom® x7433RE Quad-core Processor up to 3.4 GHz
Intel® Twin Lake N355 Core™ 3 Octa-core Processor up to 3.9 GHz*
Intel® Twin Lake N150 Quad-core Processor up to 3.2 GHz
Intel® UHD Graphics
1 x SO-DIMM DDR5 up to 16 GB
1 x TPM 2.0
Auto reset for unresponsive system
1 x HDMI® with support for 4K@60Hz as specified in HDMI 2.0b
1 x Line-out, 1 x Mic-in (Optional)
• 1 x 2.5GbE from I226-IT via RJ-45 or M12 X-code for PoE model
• 4 x GbE* from Marvell Ethernet Switch w/ PoE (PSE Class 3: 15W) via RJ-45 or M12 X-code
* Share with 1GbE bandwidth; Power budget: 60W
**Non-PoE model: 2 x 2.5GbE
***M12 X-code cable is not included in the package

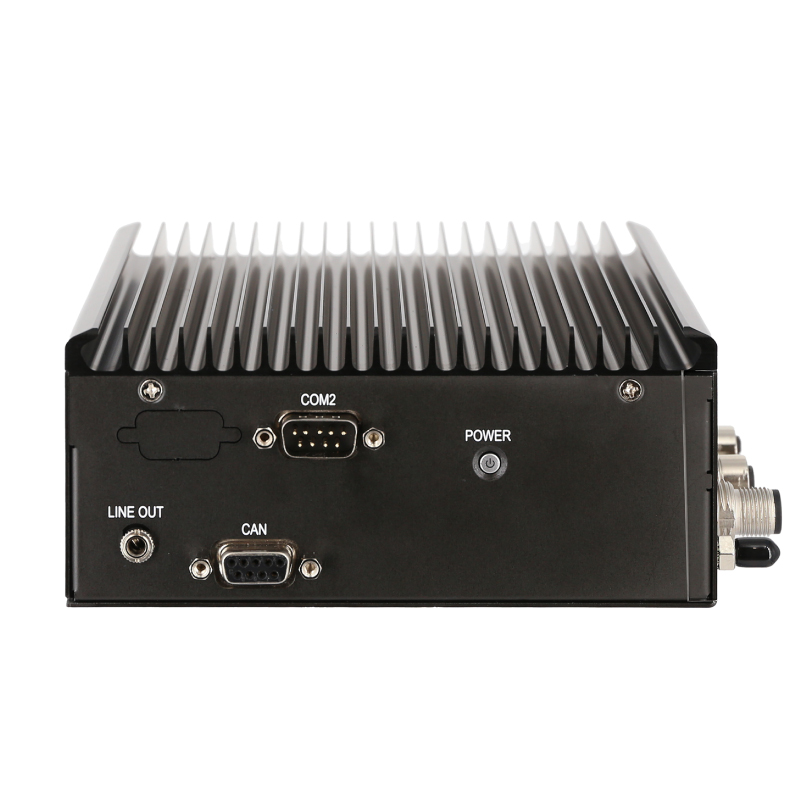

1 x CAN FD
2 x USB 3.2, 2 x USB 2.0
8 x DI (5-48VDC), 4 x DO (12VDC/100mA)
2 × RS-232/422/485 ports, expandable with 4 optional COM ports
• 1 x M.2 3042/3052 Key B for WWAN with dual Nano SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT
• 1 x M.2 2280 Key M for NVMe SSD
• 1 x M.2 2280 Key M for NVMe/SATA SSD
x7000RE Processor: -40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
N-series Processor: -30°C ~70°C (-22°F~158°F) with 0.6m/s airflow
*The x7000RE processor for non-PoE models can operate up to 75°C (167°F), the processor performance may be limited.
** Operating temp. varies by the accessories installed.
-40 ~ 80°C (-40°F ~ 176°F)
10% RH – 90% RH (non-condensing)
• IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810H, Method 514.8, Procedure I, Category 4
MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)
DC 9-60V
*Power input for PoE models is recommended to be 24V or above.
OCP, OVP, surge protection, reversed polarity protection
Ignition detection, Smart Power Management
Backup battery for system power backup
* Non-PoE model only
Windows 11 IoT Enterprise LTSC, Ubuntu 24.04 LTS
Aluminum Alloy with Fanless Design

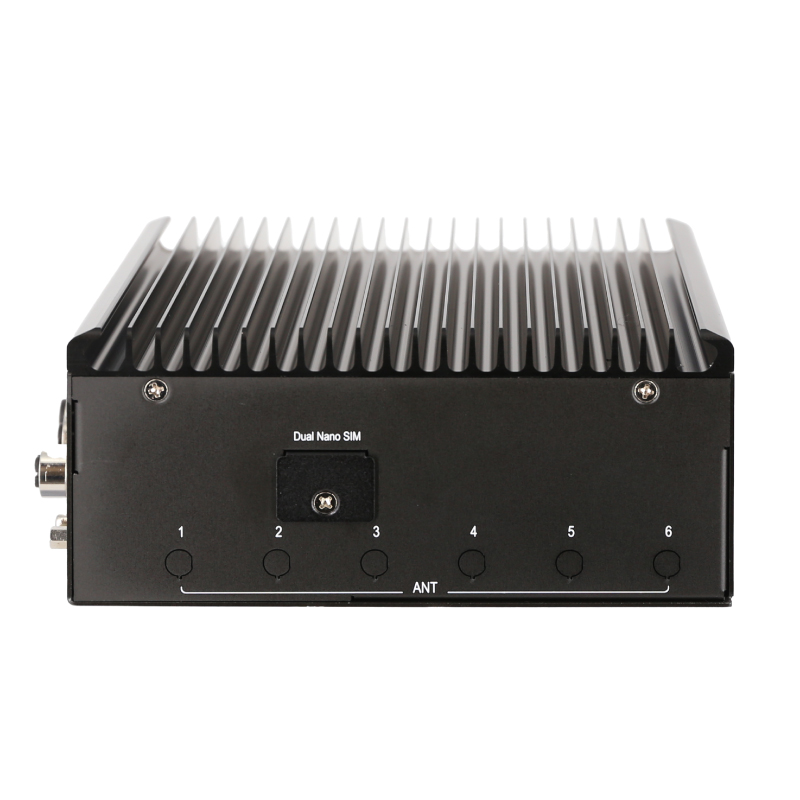

6 x SMA connector panel mount hole
DIN rail, Wall-mount
• RJ-45 model: 150 x 150 x 65 mm (5.91 x 5.91 x 2.56 in.)
• M12 PoE model: 150 x 150 x 87 mm (5.91 x 5.91 x 3.43 in.)
• CE, FCC Class A, UKCA, E-Mark, EN 62368-1, EN 50155, EN 45545-2 (R25)
| VBOX-3132P |
VBOX-3132P-yyyy-zzzzz (yyyy=M12X; zzzzz=x7835=Intel Atom® x7835RE, zzzzz=x7433=Intel Atom® x7433RE) |
| VBOX-3132-D25-M12X |
VBOX-3132-D25-M12X-zzzzz (zzzzz=x7835=Intel Atom® x7835RE, zzzzz=N150 =Intel® Processor N150) |
| VBOX-3132-D25 |
VBOX-3132-D25-zzzz (zzzz=N355=Intel® Core™ 3 Processor N355, zzzz=N150=Intel® Processor N150) |
| VBOX-3132P |
Intel Atom® x7000RE 4-Port PoE M12/RJ-45 DIN rail Rugged Edge Computer |
| VBOX-3132-D25-M12X |
Intel Atom® x7000RE/Twin Lake Dual 2.5GbE M12 DIN rail Rugged Edge Computer (BBU for Option) |
| VBOX-3132-D25 |
Intel® Twin Lake Processor Dual 2.5GbE RJ-45 Fanless Edge Computer (BBU for Option) |
Made in Taiwan
DDR5 SO-DIMM 16GB
M.2 2280 NVMe SSD 256GB~2TB
M.2 2230 Wi-Fi Module
M.2 3042/3052 WWAN Modem
M.2 2242 GNSS Module
BAT-2300v2 (Operating Temp.: -20°C~60°C (-4°F~140°F) (Only for non PoE model)
Non-PoE model: DC 12V, 60W
PoE model: DC 24V, 160W
M12 X-code to RJ-45 (1M)
