In-Vehicle Rugged Computer

VBOX-3630(P)

• Intel® 11th Gen Core™ i7-1185G7E 1.8GHz up to 4.4GHz

• Intel®11th Gen  Core™ i5-1145G7E 1.5GHz up to 4.1GHz

• Intel® 11th Gen Core™ i3-115G4E 2.2GHz up to 3.9GHz

• Intel® Celeron® 6305E up to 1.8GHz

• 2 x DDR4-3200 SO-DIMM Up to 64GB

• 1 x Intel® 2.5GbE

• 3 x Intel® Gigabit Ethernet

• Watchdog Timer Support, Offer 1 – 255 Step

• 2.0

• 2 x USB 3.2 Gen 2 (10 Gbps)
• 2 x USB 2.0

• 4 x RJ-45 or 4 x M12 X-coded (1 x 2.5GbE, 3 x GbE)

(Optional PoE w/ Max. 60W Power Budget)

• 6 x DI (5~60V) and 4 x DO (5V/100mA)

• 2 x DC Output (12V/1A )

• 1 x LINE-Out and 1 x MIC-In (1 x LINE-In for Option)

• 2 x HDMI, 1 x DP, 1 x DVI-D* (Supports 4 Independent Display)

*Single-Link cable only

• 2 x mPCIe

*One is shared with M.2 Key B

• 1 x M.2 2230 Key E, 2 x M.2 3042/52 Key B

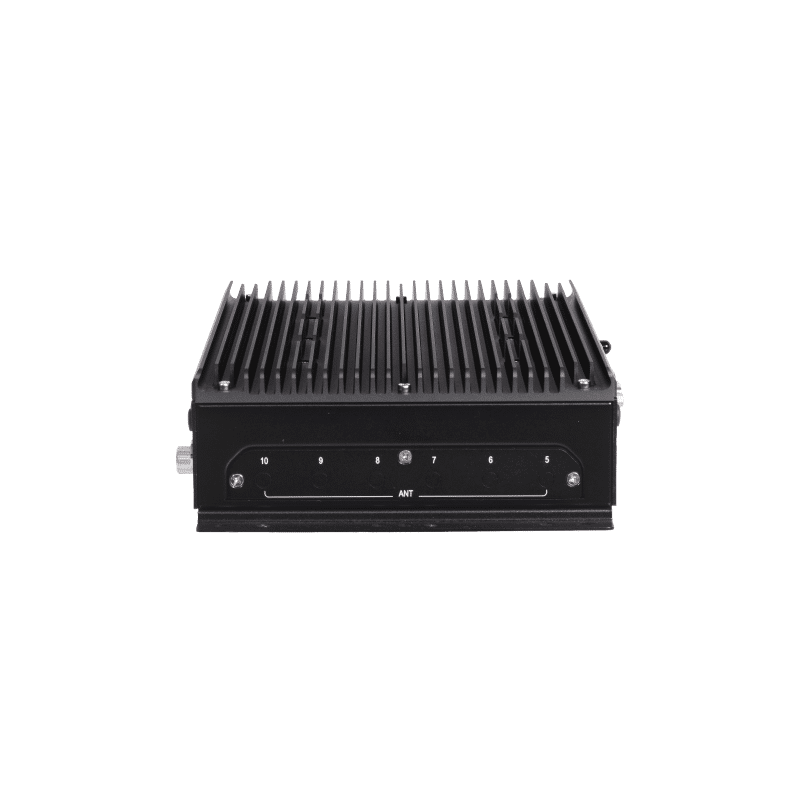

• 10 x Pre-cut Holes for External SMA Antenna

• 2 x SIM Card Sockets Supported Onboard with Eject

• 2 x 2.5″ Drive Bay for SATA Type HDD/SSD Support RAID 0,1

• 1 x M.2 2280 Key M for NVMe SSD

• Windows 10 IoT LTSC (64-bit), Windows 11 IoT (64-bit)

• Linux Ubuntu 20.04.6 LTS (64-bit), 22.04 LTS (64-bit)

• Intel® Iris® Xe Graphics / Intel® UHD Graphics

• Max Resolution (HDMI® 2.0b): 4096 x 2304@60Hz
• Max Resolution (DP): 4096 x 2304@60Hz

• -40°~ 70°C, ambient w/ 0.6m/s airflow
Patent No. M448011-Thermal Cooling

• -40° ~ 85°C

• 10% RH – 90% RH (non-condensing)

• IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating

• Operating: MIL-STD-810G, Method 514.6, Procedure I, Trucks and semi-trailers 15G (11ms with SSD)

• 9~60 VDC Input
*24 ~ 60 VDC Input for VBOX-3630P-M12X

• Automatics Recovery Short Circuit Protection

• Power Ignition for Vehicles

• Power off Delay Time Setting by Software

• Optional Battery Kit for 10 Mins Operating (Oparting Temp. 0~60°C)

*UPS backup time varies depending on actual overall system power consumption.
*Patent No.: M447854 – Build-in Battery

• Aluminum Alloy

• Wall-mount

• 2,500g (Barebone)

• 250(L) x 165(W) x 55(H) mm

• VBOX-3630x-yyyy-zz (x=P=w/PoE, yyyy= M12X=M12 x-code for LAN ports, zz=i7=i7-1185G7E, zz=i5=i5-1145G7E, zz=i3=i3-1115G4E, zz=C1=6305E)

• Intel® 11th Gen Core i7-1185G7E CPU with 4 x GbE LAN On-Board Computer

• Made in Taiwan

• DDR4 SO-DIMM 3200 8GB~32GB (-40~85°C)

• 2.5 inch SATA SSD TLC 64GB~1TB (-40~85°C)

• M.2 2280 NVMe 256GB~1TB TLC (-40~85°C)

• M.2 2230 Wi-Fi 6E + Bluetooth 5.2 Module

• M.2 3042/52 5G/LTE Modem

• mPCle GPS Module

• mPCIe CAN Bus Module

• BAT-3630 Kit, 2,350mAh 3S1P Battery Kit (0~60°C)
