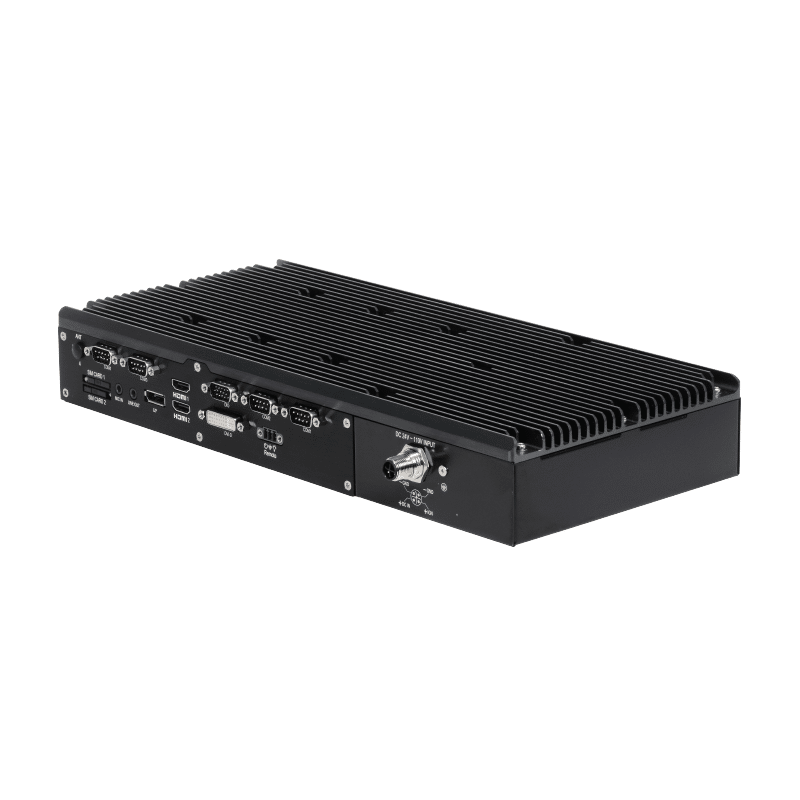

In-Vehicle Rugged Computer

VBOX-3630R-M12X

11th Gen Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz
11th Gen Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz
11th Gen Intel® Core™ i3-1115G4E 2.2GHz up to 3.9GHz

Intel® Celeron® 6305E up to 1.8GHz

2x DDR4-3200 SO-DIMM Up to 64GB

1 x Intel® 2.5GbE Supports 10/100/1000/2500BASE-T

3 x Intel® Gigabit Ethernet

Watchdog Timer Support, offer 1 – 255 Step

2.0

2 x USB 3.2 Gen 2 (10 Gbps)
2 x USB 2.0

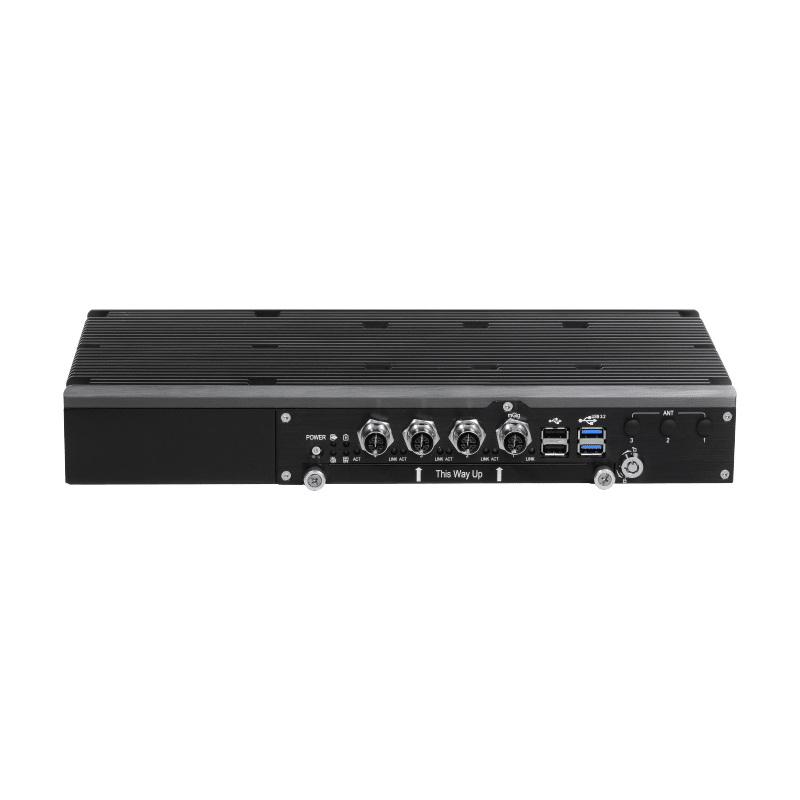

4 x M12 X-coded (1 x 2.5GbE, 3 x GbE)

60W PoE Power Budget

6 x DI (5~60V) and 4 x DO (5V/100mA)
2 x DC Output (12V/1A)

1 x LINE-Out and 1 x MIC-In (1 x LINE-In for Option)

2 x DMI, 1 x DP, 1 x DVI-D* (Supports 4 Independent Display)

*Single Link cable only

2 x mPCIe *One is shared with M.2 Key B

1 x M.2 2230 Key E, 2 x M.2 3042/52 Key B

10 x Pre-cut oles for External SMA Antenna

2 x SIM Card Sockets Supported Onboard with Eject

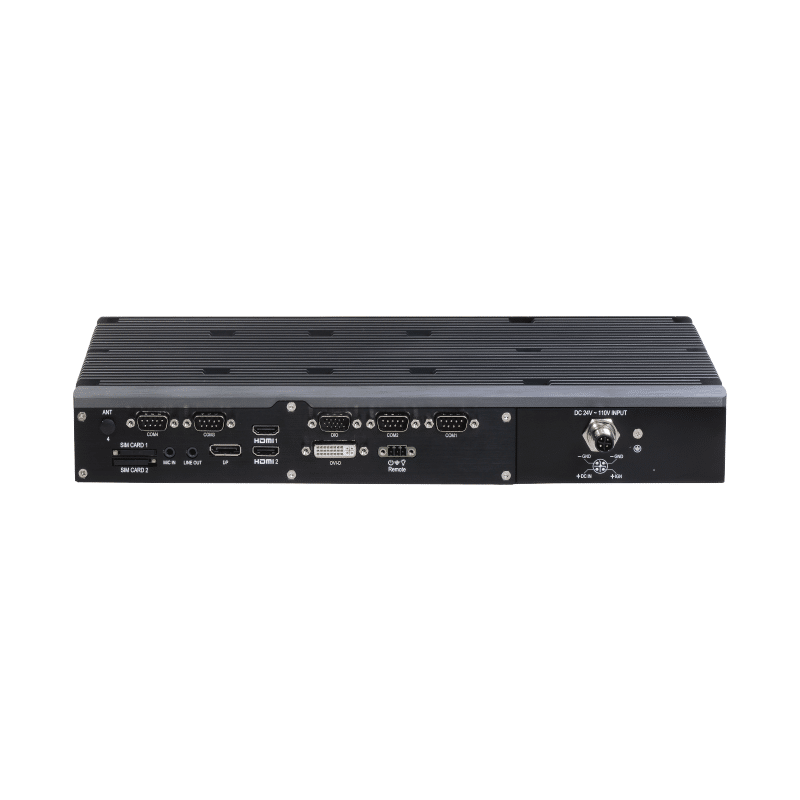

4 X RS-232/422/485 (Auto Direction Control)

2 x 2.5 Drive Bay for SATA Type HDD/SSD Support RAID 0, 1

1 x M.2 2280 Key M for NVMe SSD

Windows 10 IoT LTSC (64-bit), Windows 11 IoT (64-bit)

Linux Ubuntu 20.04.6 LTS (64-bit), 22.04 LTS (64-bit)

Intel® Iris® Xe Graphics / Intel® UHD Graphics

Max Resolution (HDMI® 2.0b): 4096 x 2304@60Hz
Max Resolution (DP): 4096 x 2304@60Hz

-40°C ~ 70°C, ambient w/ 0.6m/s airflow
Patent No. M448011-Thermal Cooling

-40°C ~ 85°C

10% RH – 90% RH (non-condensing)

IEC60068-2-64, random, 2.5G 5 500 z, 1hr/axis

MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating

Operating MIL-STD-810G, Method 514.6, Procedure I, Trucks and semi-trailers15G (11ms with SSD)

CE, FCC Class A, EN50155. EN45545-2 (R25)

Isolated DC Input 24-110VDC for Rolling Stock

Automatics Recovery Short Circuit Protection

Power Ignition for Vehicles

Power off Delay Time Setting by Software

Optional Battery Kit for 10 Mins Operating (Operating Temp. 0~60°C)

*UPS backup time varies depending on actual overall system power consumption.

Aluminum Alloy

Wall-mount

3,800g (Barebone)

365(L) x 165(W) x 55(H) mm

VBOX-3630x-yyyy-zz (x=P=w/PoE, yyyy= M12X=M12 x-code for LAN ports, zz=i7=i7-1185G7E, zz=i5=i5-1145G7E, zz=i3=i3-1115G4E, zz=C1=6305E)

11th Gen Intel® Core Processor i7-1185G7E CPU with 4 x LAN On-Board Computer

Made in Taiwan

DDR4 SO-DIMM 3200 8GB~32GB (-40~85°C)

2.5 inch SATA SSD TLC 64GB~1TB (-40~85°C)

M.2 2280 NVMe 256GB~1TB TLC (-40~85°C)

M.2 2230 Wi-Fi 6 + Bluetooth 5.2 Module

M.2 3042/52 5G / LTE Modem

mPCIe GPS Module

mPCIe CAN Bus Module

BAT-3630 Kit, 2,350mAh 3S1P Battery Kit (0~60°C)
