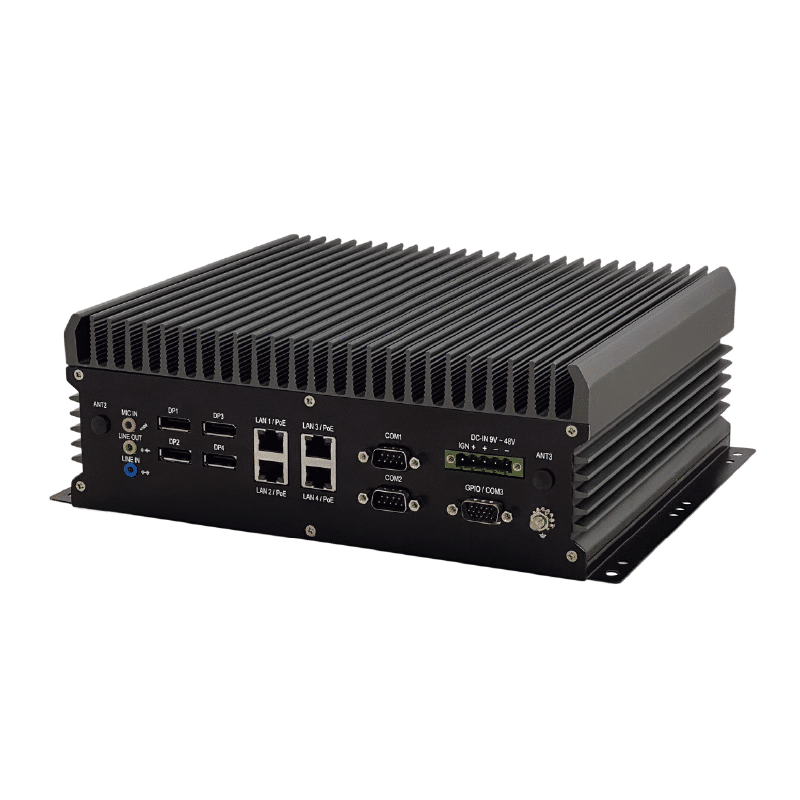

Edge AI Rugged Computer

ABOX-5100(P)

AMD RyzenTM V1807B Quad Core Soc (3.3~3.6GHZ)

2 x DDR4 2400 MHz SO-DIMM up to 32GB

1 ~ 255 Level Reset

2.0

AMD Next-generation Graphics Core and Multimedia Vega GPU with up to 11 Compute Units H.2651 (10-bit) Decode & (8-bit) Encode, VP9 Decode Up to 4x DisplayPort 1.4

4

Max Resolution (DP) : 4096×2304@60Hz

1

1

1

Intel i210AT x 2 to LAN Switch Marvell 88E6176-A1 x 2

8 x RJ45 GbE by 2 x Switch Design (MAC x 2)

Optoinal PoE for the 8 Ports 100W max.

3 x RS-232/422/485 (Optional Max 4 x RS-232/422/485)

4 x USB 3.0 Ports

8 x GPI and 4 x GPO

2 x SIM Card Sockets for 3G/LTE

2 x 2.5” Drive Bay for SATA Type HDD/SSD

3 x Full Mini-PCle Slots

1x M.2 A-E Key 2230 slot

9V – 48V DC Power Input

Automatics Recovery Short Circuit Protection

Vehicle Power Ignition for Variety Vehicle

Power off Delay Time Setting by BIOS and Software

Internal Battery Kit for 10 Mins Operating (optional)
*UPS backup time varies depending on actual overall system power consumption.

260(L) x 226(W) x 95(H) mm

5220g (Barebone)

Aluminum Alloy

Wall-mount

10% RH – 90% RH (non-condensing)

-40°C ~ 70°C
* CPU configure at 25W, ambient w/ 0.6m/s airflow

-40°C ~ 80°C

MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating

CE, FCC Class A, E-Mark

Win10 LTSC 1809

Ubuntu 18.04 64bit

ABOX-5100-V1807
ABOX-5100 P-V1807 (with PoE)

AMD RyzenTM Embedded V1000 Processor w/ 8 GbE/2 COM/ 9-48V Input AI GPU Computing

Made in Taiwan

SO-DIMM max.DDR4-2400,4GB~32GB,0~70C/-40°C~85°C

2.5inch MLC/TLC 64GB~1TB 0~70C/-40°C~85°C

WiFi M.2 2230 A-E key module

LTE mini PCIe card

GPS miniPCIe card

CANBUS mini PCIe card

BAT-5200 kit, 5200mA/h, -30~60oC, discharge -20~60oC, operating about 10 mins.
