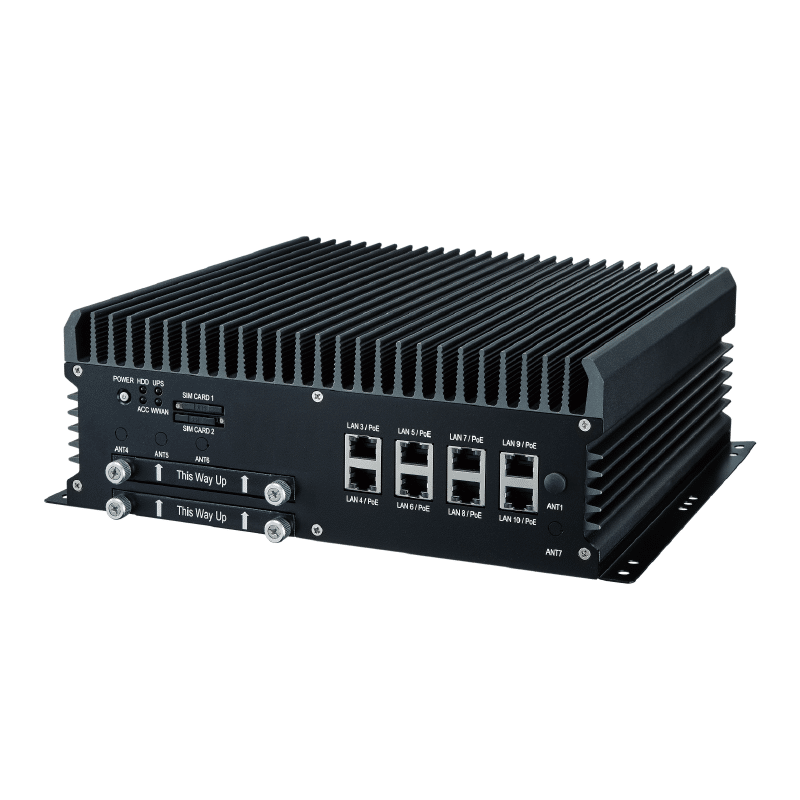

Intel® 8th Gen Core i7/i5/i3 CPU w/ 10 x GbE/ 3 x COM/ 3 x DP/ 4 x USB 3.0/ 9-48V AI GPU Computing for GPU Computer applications
Intel® Gen8 Core i7-8700T (12M Cache 2.4GHz up to 4.0GHz)
Intel® Gen8 Core i5-8500T (9M Cache 2.1GHz up to 3.5GHz)
Intel® Gen8 Core i3-8100T (6M Cache 3.1GHz)
Intel® Gen8 Celeron G4900T (2M Cache 2.9GHz)
2 x DDR4 2400 MHz SO-DIMM up to 32GB
1 ~ 255 Level Reset
2.0
Intel® UHD Graphics 630
3
Max Resolution (DP) : 4096 x 2304@60Hz
1
1
1
9 x Intel® i210-AT and 1 x i219LM (iAMT9.5 w/ i5, i7 only) Gb/s
Ethernet Controllers Onboard Support PXE and WOL
10 x RJ45 Ports for GbE (Optional for M12 connector )
Optional 8 x PoE total Max. 100W
3 x RS-232/422/485 (Optional Max 4 x RS-232/422/485)
4 x USB 3.0 Ports
8 x GPI and 4 x GPO
2 x SIM Card Socket for 3G/LTE
2 x 2.5″ drive bay for SATA Type RAID 0, 1, 5
1
3 x Full Mini-PCIe Slots
1x M.2 A-E Key 2230 slot
9V – 48V DC Power Input
Automatics Recovery Short Circuit Protection
Vehicle Power Ignition for Variety Vehicle
Power off Delay Time Setting by BIOS and Software
Internal Battery Kit for 10 Mins Operating (optional)
*UPS backup time varies depending on actual overall system power consumption.
260(L) x 250(W) x 95(H) mm
5190g (barebone)
Aluminum Alloy
Wall-mount
10% RH – 90% RH (non-condensing)
-40°C ~ 70°C, ambient w/ 0.6m/s airflow
-40°C~ 80°C
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
CE, FCC Class A, E13
Win10 LTSC 1809
Ubuntu 18.04 64bit

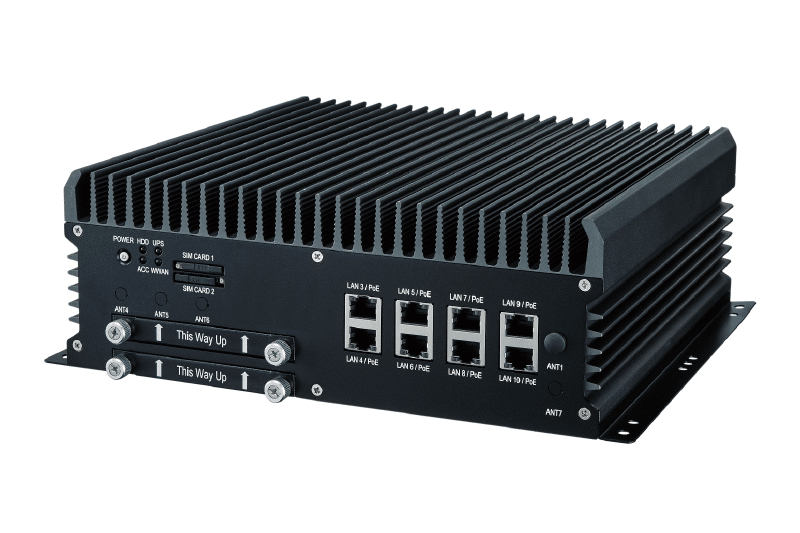

ABOX-5200P-i7 Optional for i5/i3/C1 (with PoE)
ABOX-5200-i7 Optional for i5/i3/C1
Intel® 8th Gen Core i7/i5/i3 CPU w/ 10 x GbE/ 3 x COM/ 3 x DP/ 4 x USB 3.0/ 9-48V AI GPU Computing
Made in Taiwan
SO-DIMM max.DDR4-2666,4GB~32GB,0~70oC/-40~85oC
2.5inch MLC/TLC 64GB~1TB 0~70C/-40~85C
MLC 16G~512GB, 0~70C/-40~85C
M.2 802.3a/b/g/n/ac
LTE mini PCIe card
GPS mini PCIe card
CANBUS mini PCIe card
BAT-5200 kit, 5200mA/h, -30~60oC, discharge -20~60oC, operating about 10 mins.
AC/DC 220W/24V or 280W/24V power adaper
ABOX-5200 FAN kit, total size 260x253x120.7mm
