• Ready for high-speed DDR5 4800 memory, up to 16 GB capacity
• 9–36V Wide DC Input with OCP, OVP, Surge and Reversed Polarity Protection
• Up to 6 x USB Ports and 3 x COM Ports for Retail and Industrial Applications
• 2 x Intel 2.5Gb Ethernet for High-Bandwidth Uplink and Downlink Connection
• Expandable Wireless Connectivity via M.2: Wi-Fi, 5G, and LTE Module
• Support TPM 2.0 to Enhance System Security and Safeguard Critical Data

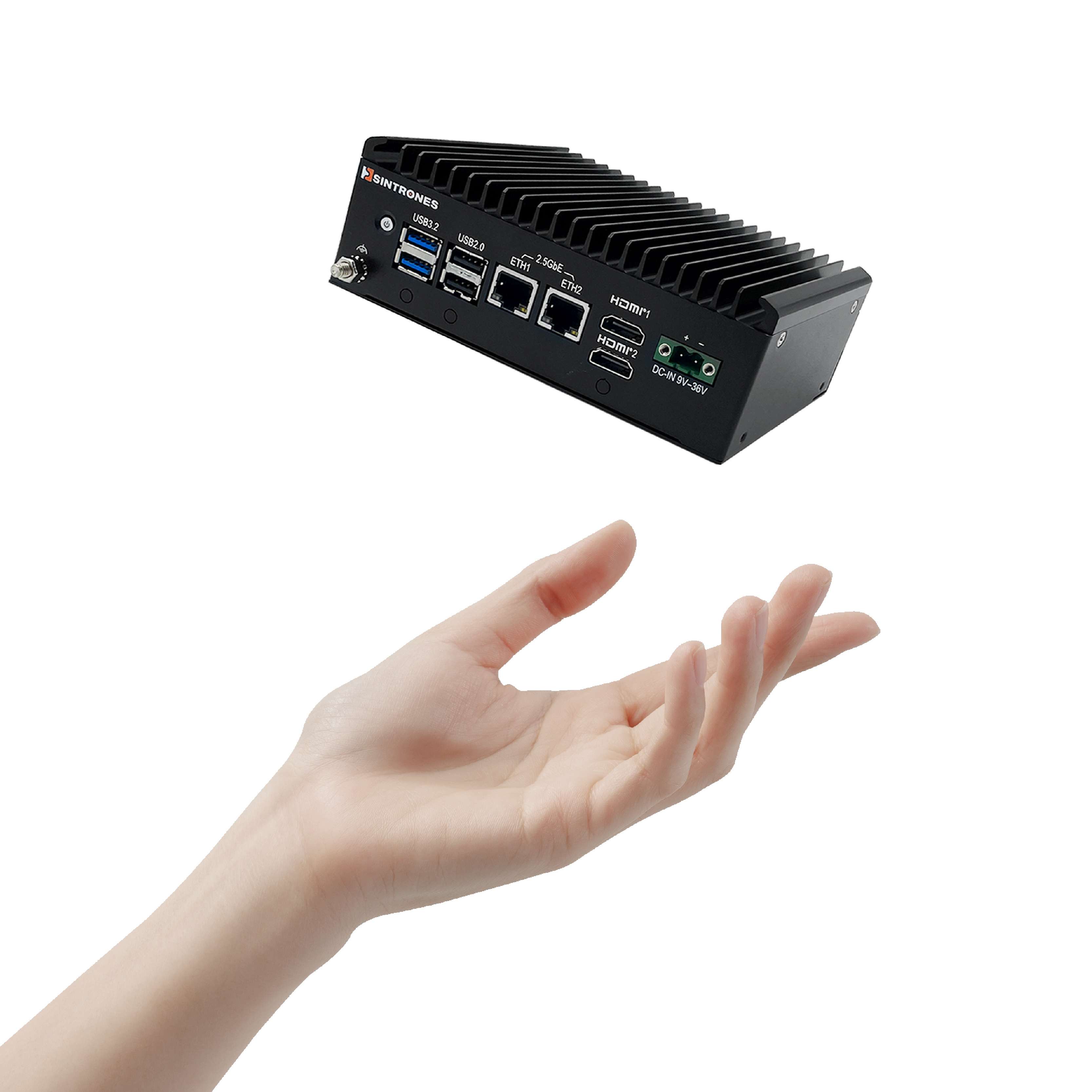

• Ultra-Compact Fanless Computer for Limited Space Deployment
• Intel® Twin Lake N150 4-core processor up to 3.60 GHz
• Intel Atom® x7433RE 4-core processor up to 3.40 GHz
• Intel® Twin Lake Core™ 3 N355 8-core processor up to 3.90 GHz*
*Project-based SKU
Intel® Graphics
1 x DDR5-4800 SO-DIMM up to 16GB
TPM 2.0
Auto reset for unresponsive system
(custom 1-255 sec/min delay settings in BIOS)

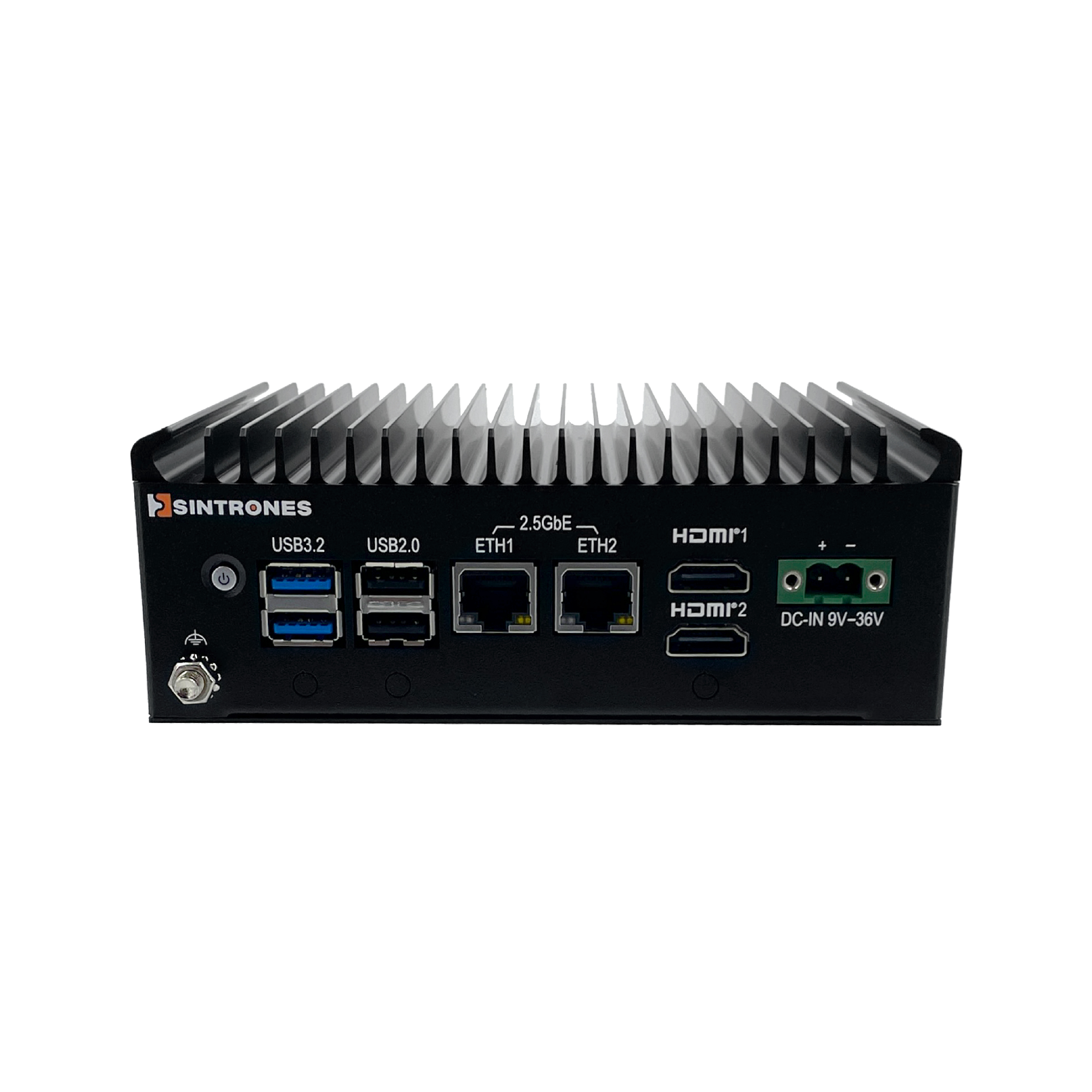

2 x HDMI® up to 3840 x 2160 @ 60Hz as specified in HDMI 2.0b

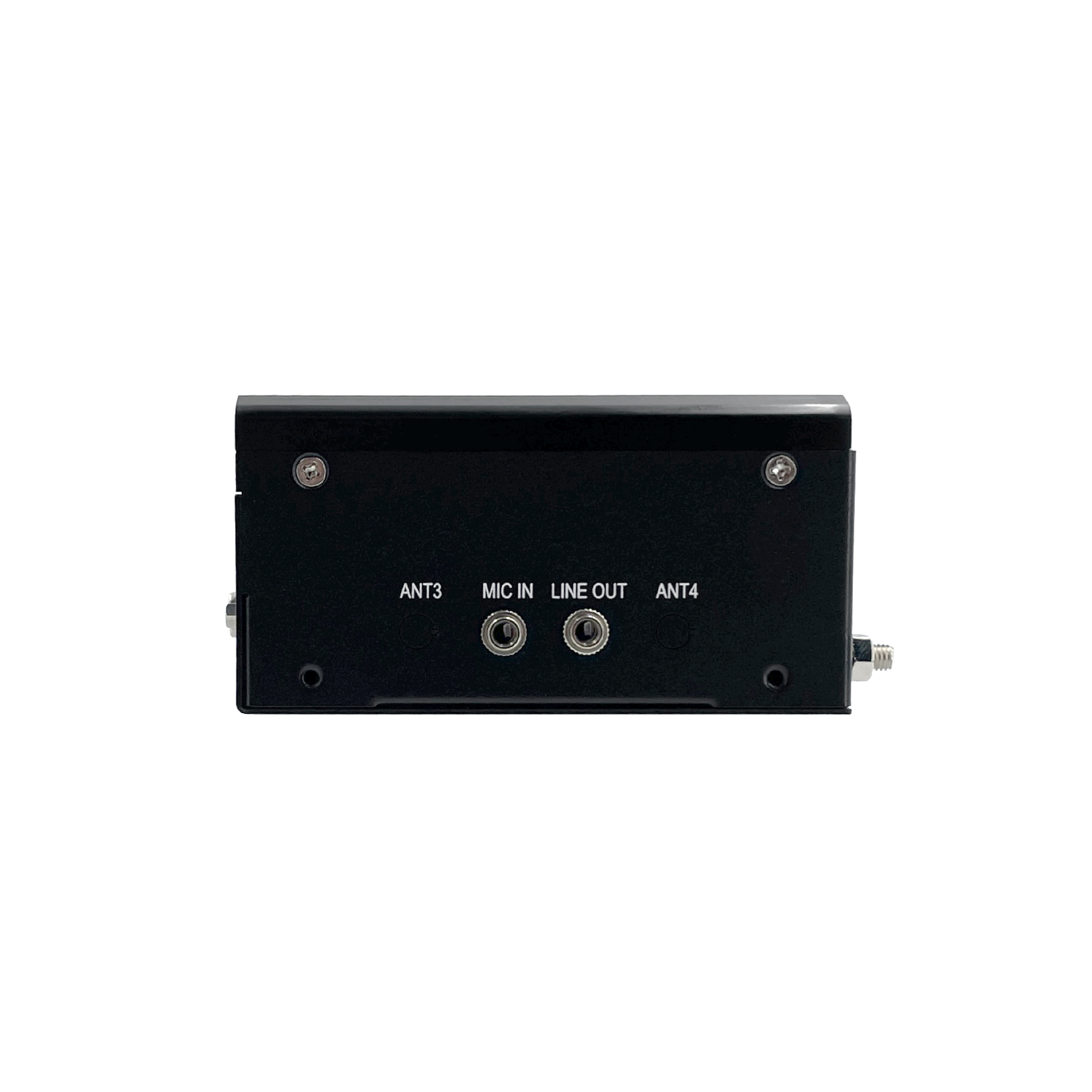

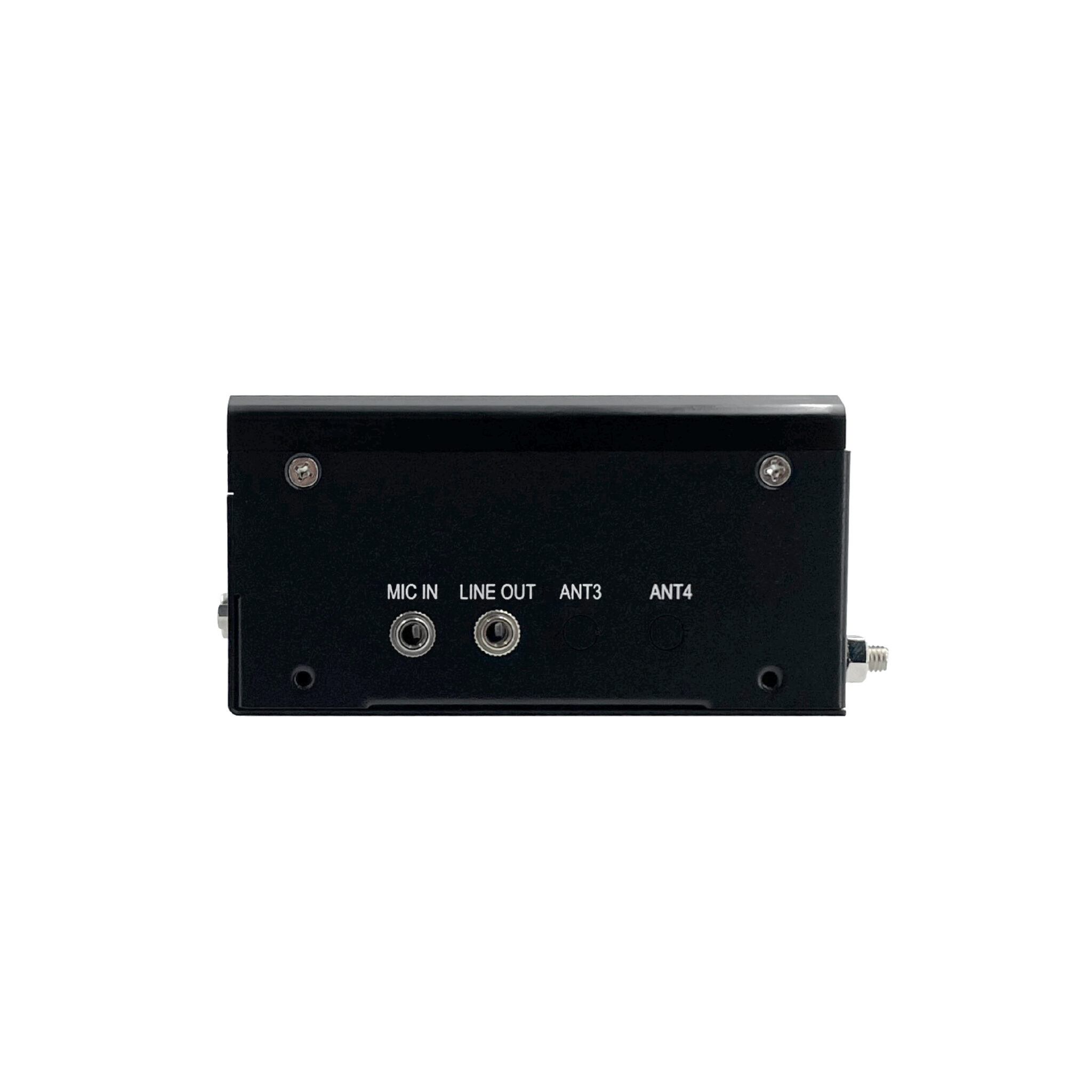

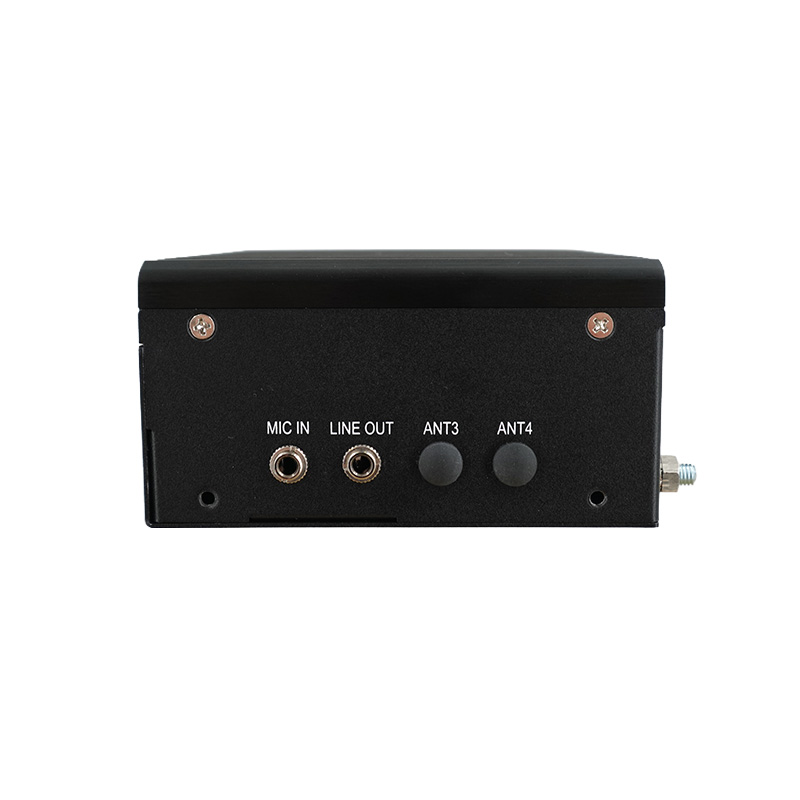

1 x Line-out, 1 x Mic-in
2 x 2.5GbE (Intel I226-LM) via RJ-45
• 2 x USB 3.2 Gen 1, 2 x USB 2.0 (SBOX-2625-2S, SBOX-2625-3S)
• 2 x USB 3.2 Gen 1, 4 x USB 2.0 (SBOX-2625 only)
• 4 x DI (DC 5-36V), 4 x DO (DC 5V/100mA)
(SBOX-2625-2S only)

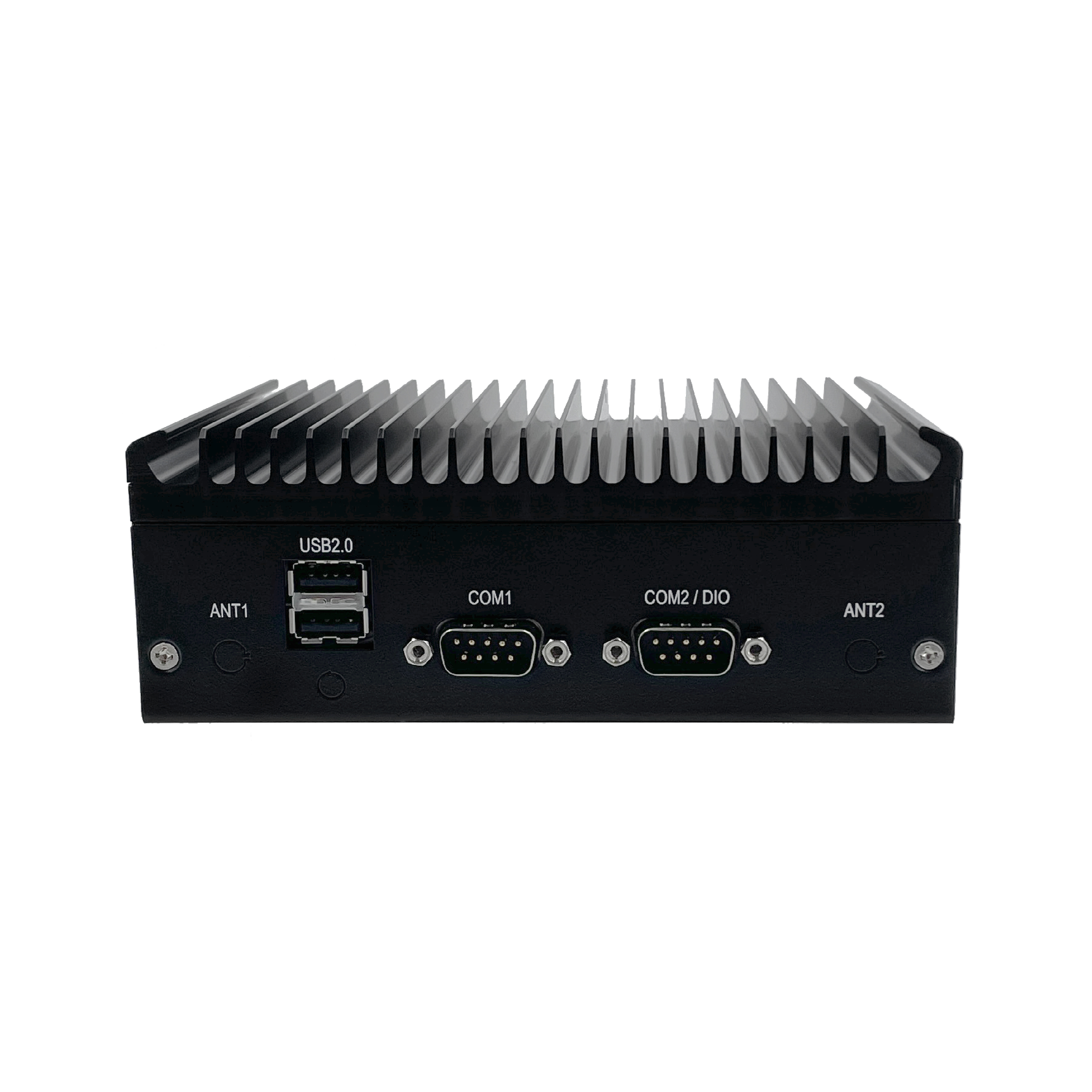

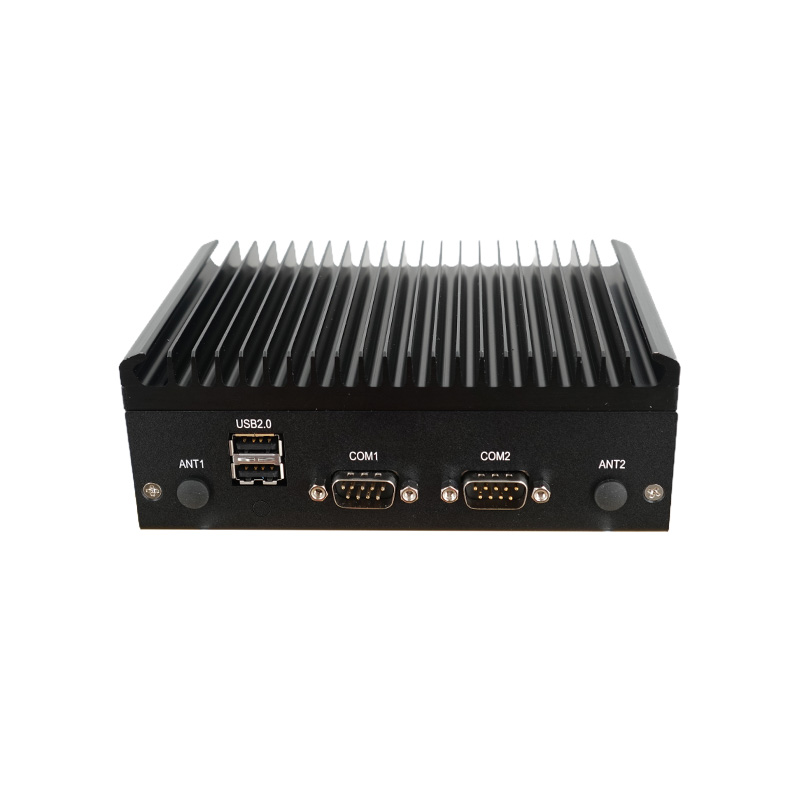

• 2 x RS-232/422/485 (SBOX-2625, SBOX-2625-2S)

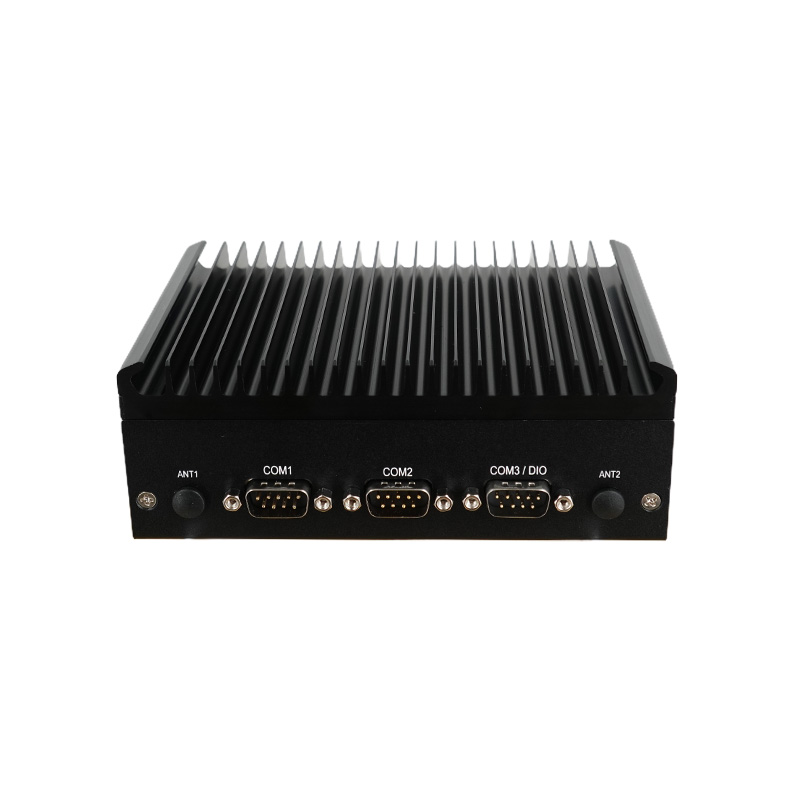

• 2 x RS-232/422/485, 1 x RS-232 (SBOX-2625-3S only)
• 1 x M.2 3042/3052 Key B supports PCIe and USB interface for WWAN w/ single Nano SIM
• 1 x M.2 2230 Key E for Wi-Fi/BT
• 1 x 2.5” SATA SSD
• 1 x M.2 2242 Key B for SATA SSD*
*M.2 Key B is a combo slot, either WWAN module or M.2 SATA can be installed.
DC 9-36V (nominal power input DC 12V/24V) via 2-pin terminal block
OCP, OVP, surge protection, reversed polarity protection
• Windows 11 IoT Enterprise LTSC
• Ubuntu 24.04 LTS
-40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
-40°C ~ 85°C (-40°F ~ 185°F)
10% RH ~ 90% RH (non-condensing)
CE, FCC Class A, UKCA, IEC/EN 62368-1
Aluminum Alloy
4 x SMA connector mounting hole
DIN rail, Wall, VESA mounting
1.2kg (2.64 lb)
150 x 106 x 55 mm (5.91 x 4.17 x 2.17 in.)
SBOX-2625(2S)(3S)-zzzzz (2S=2 x COM + 1 x DIO, 3S= 3 x COM, zzzzz=N150=Intel® Processor N150,
zzzzz=x7433RE=Intel Atom® x7433RE)

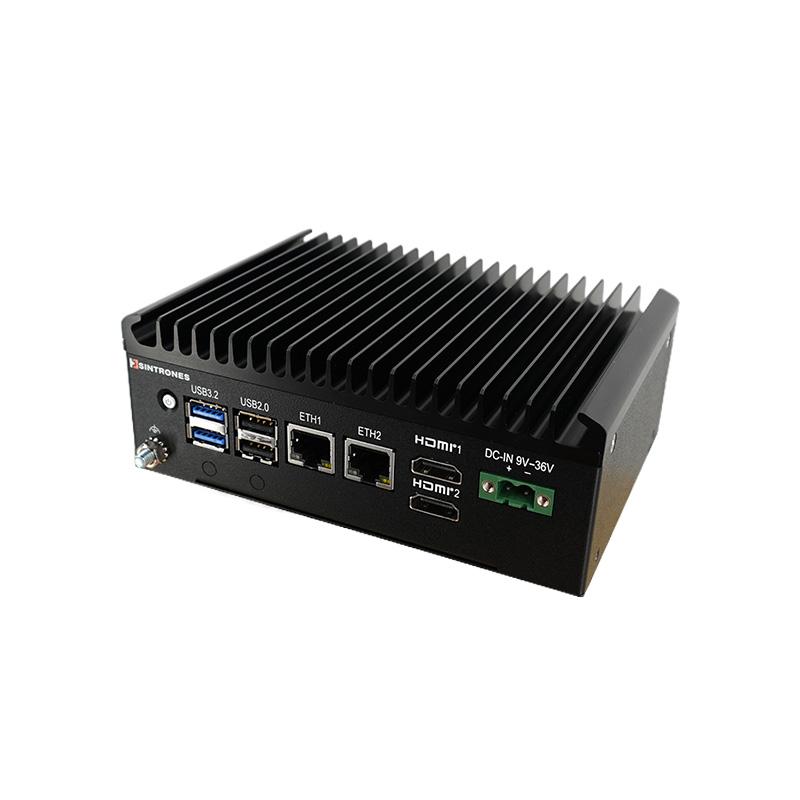

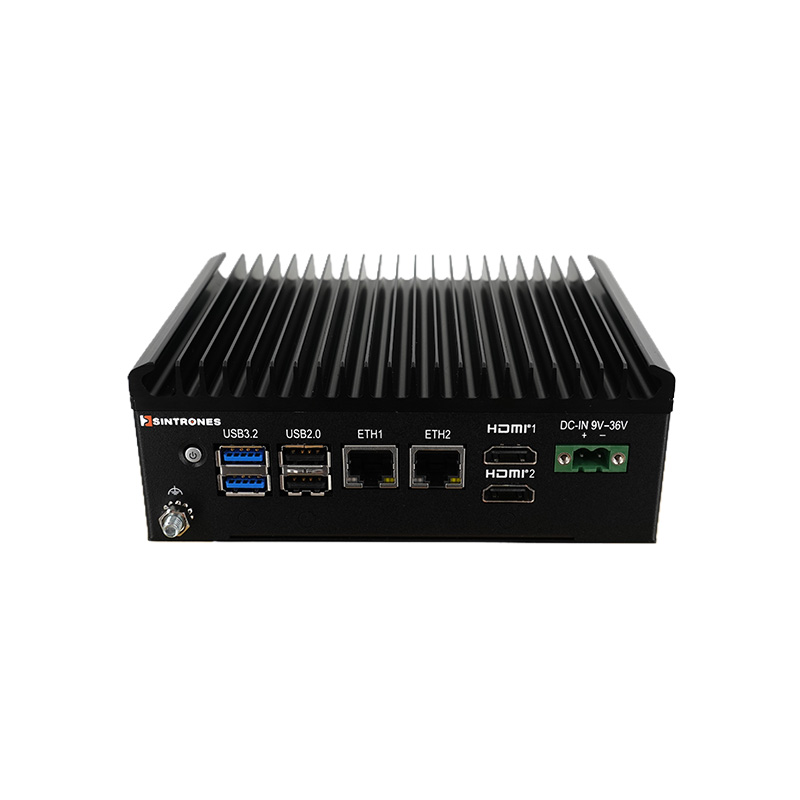

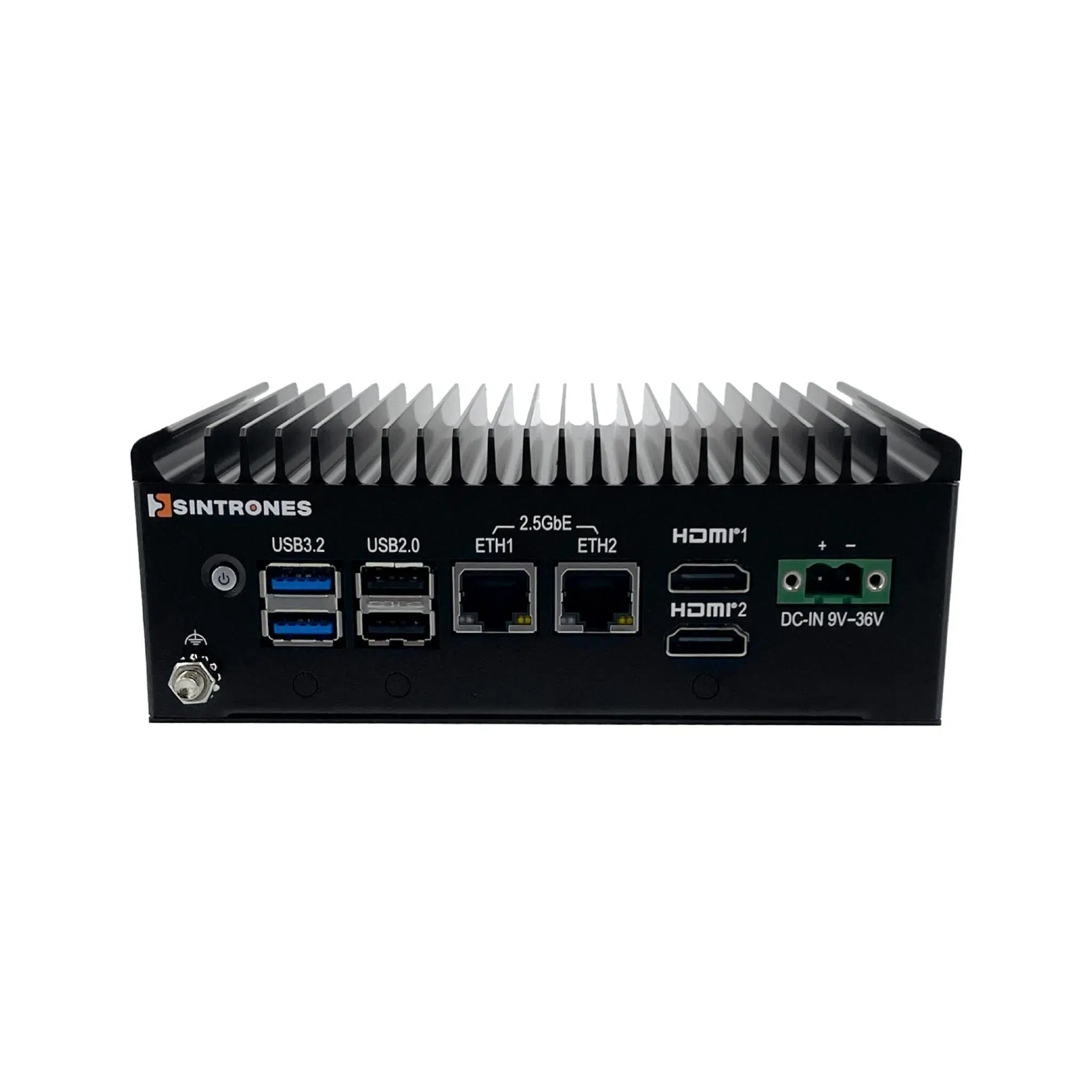

Intel® Twin Lake N150/Atom x7433RE Ultra-Compact Embedded Computer
Made in Taiwan
DDR5-4800 SO-DIMM, 8GB to 16GB
M.2 2242 Key B+M SATA SSD
2.5″ SATA SSD
M.2 2230 Key A-E Wi-Fi module
M.2 3042/3052 Key B WWAN module
AC/DC 100-240V/12V 60W
All specications are subject to change without notice.
Why Real-Time PCBA Coating Inspection Matters in Electronics Manufacturing In today’s fast-evolving electronics manufacturing industry, automated PCBA coating inspection systems powered by Edge Computing and machine vision technologies are becoming essential for ensuring producti...
Read more
The Evolution of Smart Grid Infrastructure As cities transition toward smart grid technology, pole-mounted controllers within medium-voltage distribution networks have become critical components. These pole-mounted controllers provide the necessary remote operation capabilities ...
Read more

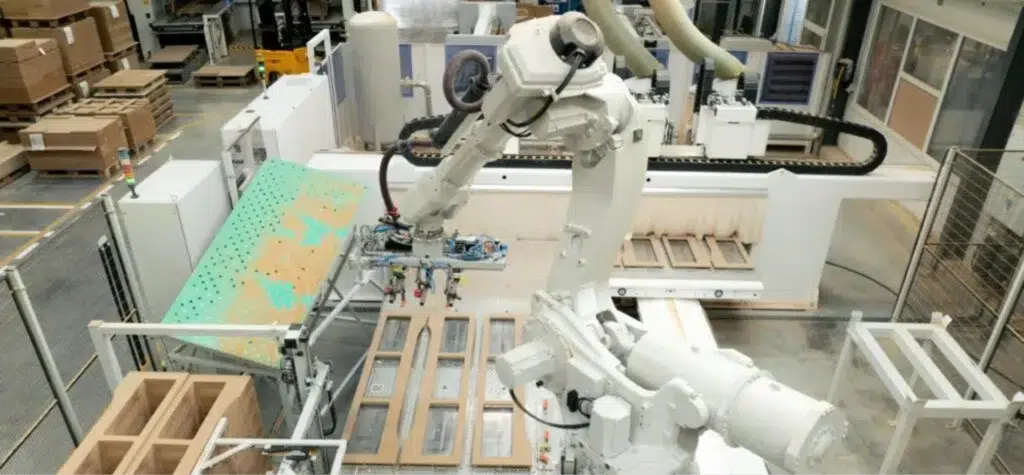

Precision and Productivity in Modern Furniture Manufacturing Modern automated furniture production relies on high-speed CNC machines, edge banding, and sophisticated cutting systems to meet today’s market demands. To maintain high output and flexibility within these automa...
